Model No.: YN-DTF-1200Z
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant
| Selling Units: | Piece/Pieces |
| Package Type: | WOODEN BOX |

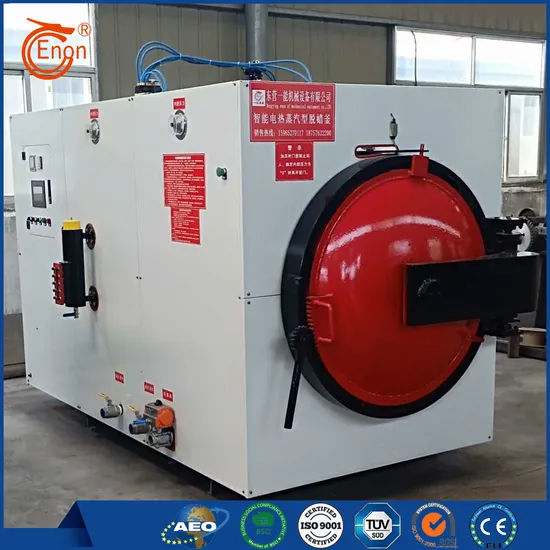

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Model | YN-DTF-1200Z | ||||
| working space | φ1200×1500mm | ||||
| working pressure | 0.85MPa | ||||
| working temperature | 185ºC | ||||
| Design pressure | 0.95MPa | ||||
| Voltage regulating range | 0~0.85MPa | ||||
| Boost rate | 0.6MPa/5s | ||||
| power | 380V/50Hz 153kw | ||||
| dimensions | 4250×2050×2150 | ||||
| weight | 4.2T | ||||
2. Key Features and Benefits
2.1 Advanced Dual-Wall Pressure Vessel
The DTF utilizes an innovative dual-wall pressure vessel design. During operation, the outer chamber maintains elevated temperature and pressure conditions, ensuring the inner surface temperature remains consistently above 150°C. This advanced configuration prevents condensate formation, enables rapid thermal equilibrium, reduces steam consumption during dewaxing, minimizes mold shell fractures, and yields recovered wax with minimal moisture content.
2.2 Enhanced System Architecture
The dewaxing system features a reinforced vessel construction, heavy-duty structural base, rapid-sealing door mechanism, integrated wax collection chamber, electric heating system, centralized control cabinet, and insulated exterior cladding. A specialized material handling cart and mold basket system ensure secure and efficient transfer of shell molds throughout the production process.
The quick-opening door system incorporates safety interlocks that prevent access while the vessel is pressurized, ensuring operator safety and process integrity. Programmable pressure control allows operators to adjust working parameters within the certified design envelope.
The system incorporates comprehensive protection features:
Automatic low-water protection with heater deactivation
Over-temperature monitoring with visual/audible alerts
Complete safety and process components including:
• Safety relief valve
• Steam control valves
• Wax discharge and drainage valves
• Check valve and pipeline filtration
• Digital pressure and temperature instrumentation
Packaging: WOODEN BOX
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 120PICS/YEAR
Certificate: ISO9001:2015
Port: QINGDAO
Payment Type: L/C,T/T
Incoterm: FOB,CIF,EXW
