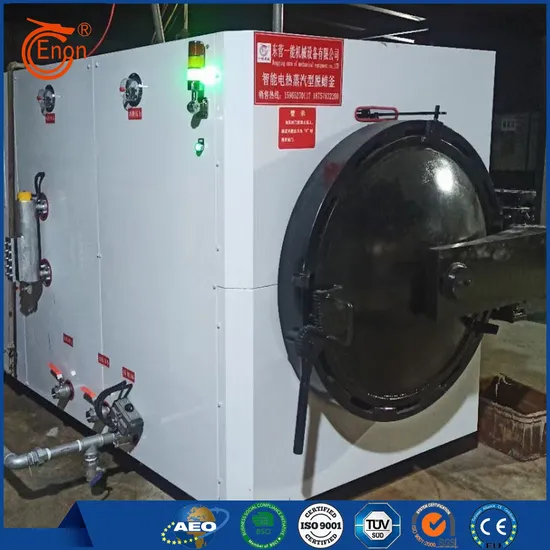

High Pressure Dewaxing Kettle: Precision Casting Equipment

High Pressure Dewaxing Kettle: Precision Casting Equipment

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	QINGDAO
Model:	YN-DTF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	WOODEN BOX
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 153kw
dimensions	4250×2050×2150
weight	4.2T

1.Highly Efficient and Energy-Saving Insulation System

The reactor utilizes a new nano-insulation material with ultra-low thermal conductivity and excellent thermal insulation properties. This design effectively minimizes heat loss during operation, reducing energy consumption by 20%-30%, significantly improving the equipment's energy efficiency. Compared to traditional dewaxing reactors, this can save companies significant energy and operating costs annually.

2.Intelligent Waste Heat Recycling Architecture

An integrated waste heat recovery device precisely captures waste heat generated during the process. Through a heat exchange system, the recovered energy is used for pre-treatment of feedwater and other heating needs within the production line, achieving cascaded thermal energy utilization. This system not only meets green manufacturing standards but also reduces overall energy costs by over 25%, achieving both economic and environmental benefits.

3.Fully Enclosed Clean Process

A completely sealed wax processing chamber eliminates the risk of contamination from contact between materials and air. Equipped with a multi-stage vapor capture and condensation system, it effectively controls volatile organic compound emissions and odor. The entire system complies with ISO Class 7 cleanroom standards, enhancing product quality while ensuring environmentally friendly production.

Supply Ability & Additional Information

Packaging: WOODEN BOX

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120PICS/YEAR

Certificate: ISO9001:2015

Port: QINGDAO

Payment Type: L/C,T/T

Incoterm: FOB,CIF
