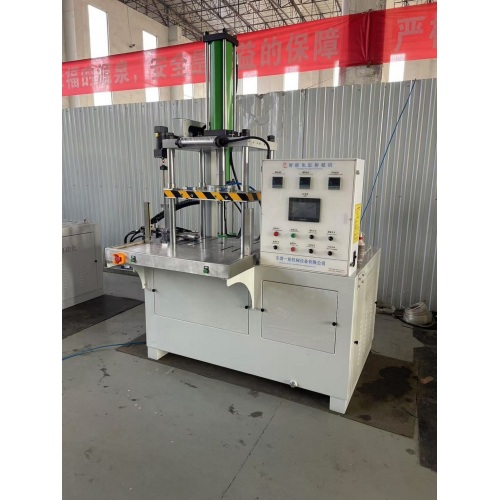

20-ton single-station wax injection machine

20-ton single-station wax injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DMZ-20LB-Y

$18830- /Piece/Pieces

18830USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-20LB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-DMZ-20LB-Y
Clamping force (max)	T	20
Mold use space(L×W×H)	mm	550×610×600
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
hydraulic oil tank	L	175
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2,Detail image

1. Fluid Control and Actuation Unit

• The wax circuit system is equipped with a cold/hot oil switching solenoid valve, enabling automatic, high-precision adjustment of the wax liquid temperature.

• The cooling cylinder chilled water circuit is switched on and off by a dedicated solenoid valve, ensuring efficient and uniform cooling of the mold.

• The cooling cylinder hot/cold oil switching is automatically controlled by a solenoid valve, flexibly adapting to the temperature requirements of different processes.

2. Human-Machine Interaction and Operation Control

• Key process parameters such as system pressure and actuation time can be directly set and modified through the human-machine interface (HMI), providing flexible and convenient operation.

• Integrated rocker switches, function buttons, and manual control of the hydraulic pump/thermal oil pump support multiple operating modes, offering intuitive response and reliable stability.

3. Core Electronic Control System Configuration

• Equipped with a contactless intermediate relay with an AC 220V input and a DC 24V output, it offers excellent anti-interference performance and a long service life.

• A PLC is used to centrally process I/O signal acquisition and command output, ensuring high system control accuracy and stable response.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
