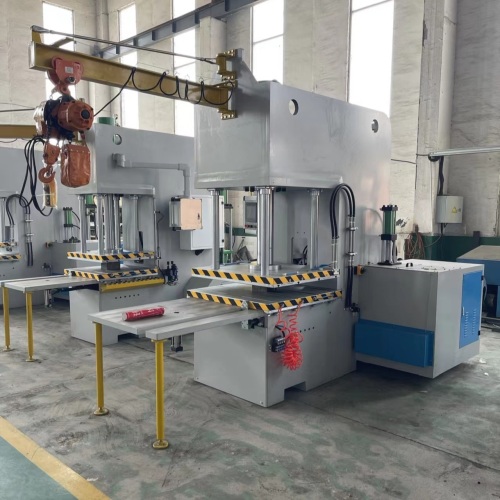

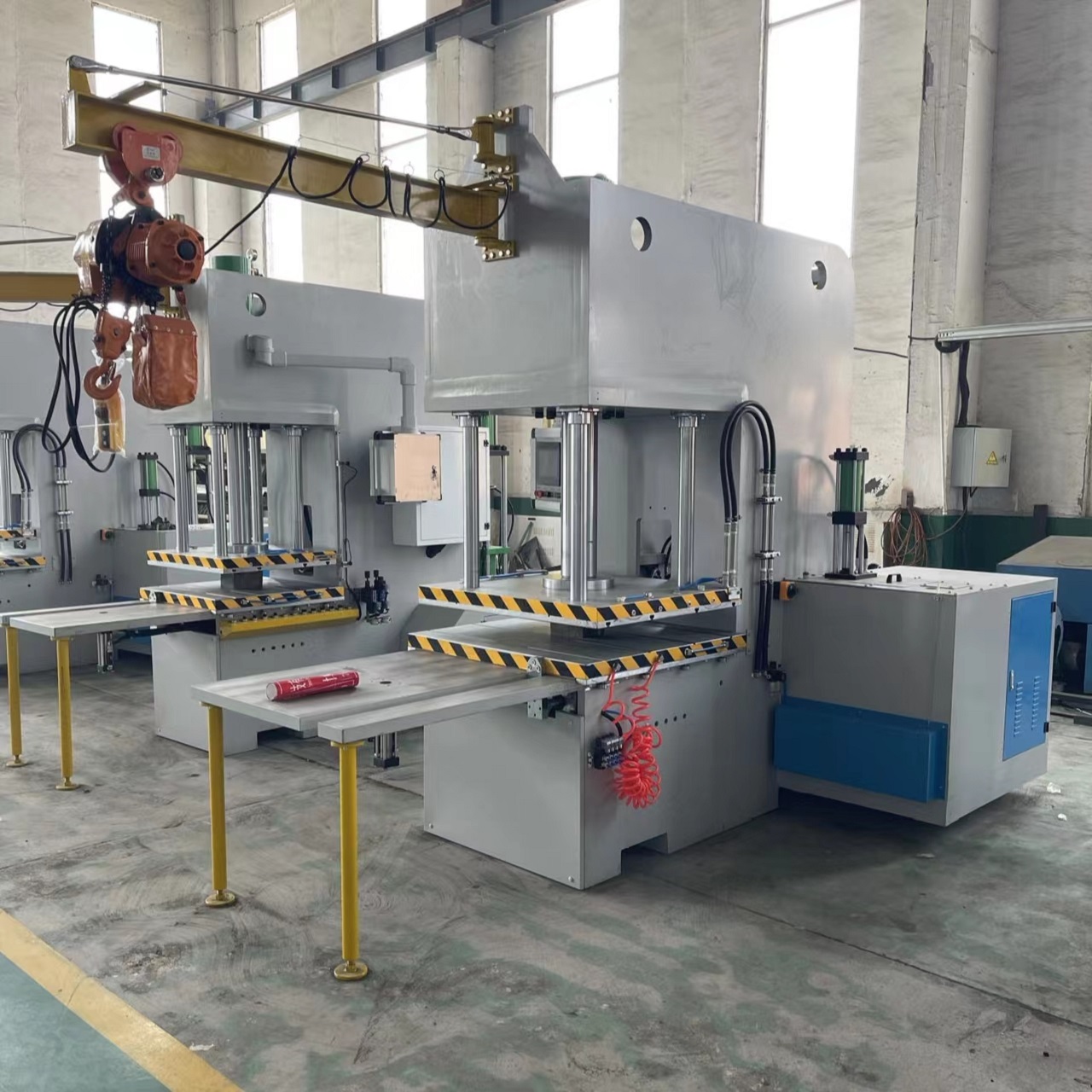

30T C-type single-station wax injection machine

30T C-type single-station wax injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DMZ-30CB-Y

$27940- /Piece/Pieces

27940USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-30CB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-DMZ-30CB-Y
Clamping force (max)	T	30
Mold use space(L×W×H)	mm	800×700×600
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
hydraulic oil tank	L	175
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	10
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

C-Type Single-Station 30T Wax Injection Molding Machine: An Efficient Tool for Precision Casting

In the field of precision casting, the C-Type single-station 30T wax injection molding machine, with its superior performance and efficient operation, has become an ideal choice for many foundries. This article will provide a detailed introduction to the technical specifications, features, and application scenarios of the C-Type single-station 30T wax injection molding machine to help you fully understand this equipment.

I. Technical Parameters

(I) Clamping Force

The C-Type single-station 30T wax injection molding machine boasts a clamping force of 30 tons, meeting the clamping requirements of most precision casting molds and ensuring mold stability and sealing during the wax injection process.

II. Features

(I) Efficient Production

The C-Type single-station 30T wax injection molding machine excels in production efficiency, primarily reflected in the following aspects:

Fast Cooling: Its C-shaped cantilever frame structure increases mold space and facilitates operation. Furthermore, the machine features a built-in chilled water connection to quickly reduce mold temperature, shorten wax mold cooling time, and improve production efficiency. Precise Temperature Control: PID intelligent digital display temperature control is used for temperature control, offering high control accuracy and minimal temperature differential, meeting the requirements of diverse wax product designs.

Flexible Adjustment: The nozzle utilizes a post-injection mechanism and features electrical vertical adjustment and hydraulic forward and backward extension for greater operational flexibility. Parameters such as injection time, hold time, mold closing pressure, and injection pressure can all be adjusted and set.

(II) Stable and Reliable

Hydraulic System: Hydraulic drive is used throughout, ensuring smooth and reliable equipment operation and minimizing mechanical failures.

Dual Control: The electronic control system utilizes an Omron PLC programmable controller for simple operation and stable process parameter execution.

Adjustable Pressure: The mold closing, wax extraction, and injection pressures are all freely adjustable. The injection wax pressure features variable pressure control to meet the requirements of different molds and production processes, ensuring stable operation under various operating conditions.

Safety Protection: All temperature and heating control systems on the equipment are equipped with secondary protection to ensure safe operation.

(III) Energy Saving and Consumption Reduction

Heat Recovery: Heat required for the insulation system is recovered from the wax liquid, reducing external energy consumption and lowering operating costs. Energy-saving Design: The equipment is designed with energy conservation in mind, such as hydraulic or screw-driven nozzle raising and lowering, achieving stable, energy-efficient operation under PLC control.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
