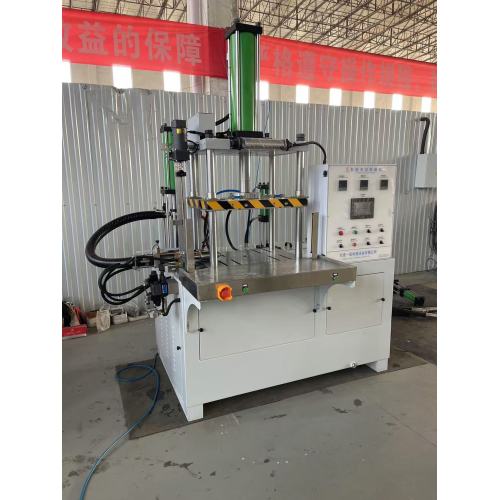

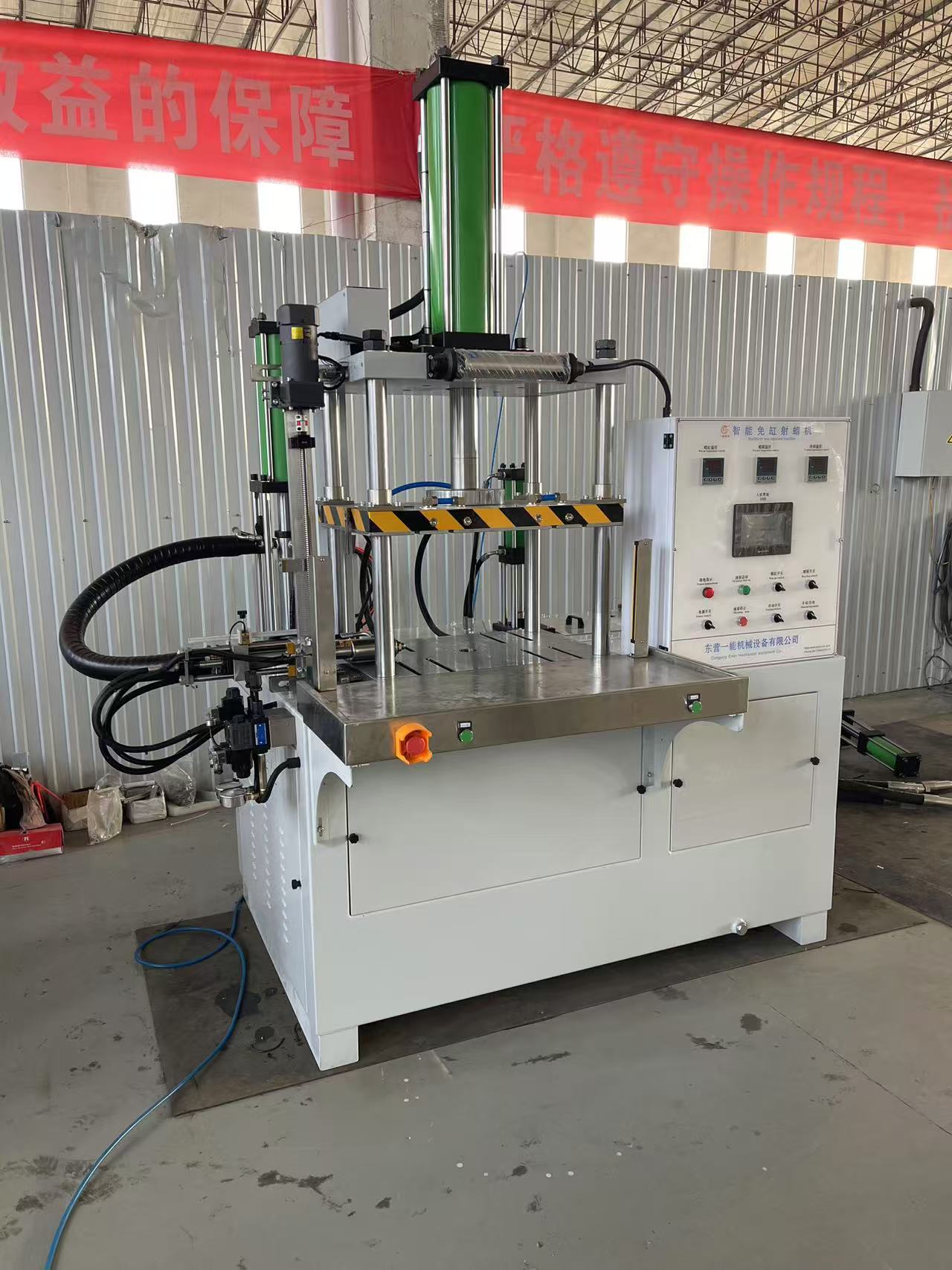

20-ton vertical single-station wax injection machine

18830USD

Contact Now

Product Attributes

Model No.: YN-DMZ-20LB-Y

Brand: Enon

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-DMZ-20LB-Y
Clamping force (max)	T	20
Mold use space(L×W×H)	mm	550×610×600
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
hydraulic oil tank	L	175
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Maximum wax injection (wax cylinder)	L	3.3

2,Configuration instructions

-One solenoid valve for switching between hot and cold oil in the wax circuit.

-One solenoid valve for controlling the flow of chilled water in the cooling cylinder.

-One solenoid valve for switching between hot and cold oil in the cooling cylinder.

2. Key operating parameters, such as pressure and cycle time, can be easily adjusted through the user interface (HMI).

Manual operation, including mode selection and control of the hydraulic and hot oil pumps, is performed via dedicated buttons and selector switches.

-The system collects and executes PLC input/output signals in real time.

-Equipped with a non-contact intermediate relay that accepts 220V AC input and 24V DC output.

-The main power circuit is protected by a residual current circuit breaker.

-Each motor is controlled via an AC contactor and an adjustable thermal overload protector, set according to the motor's rated current.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
