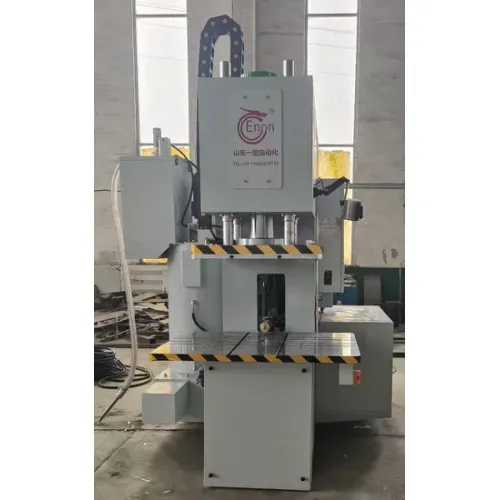

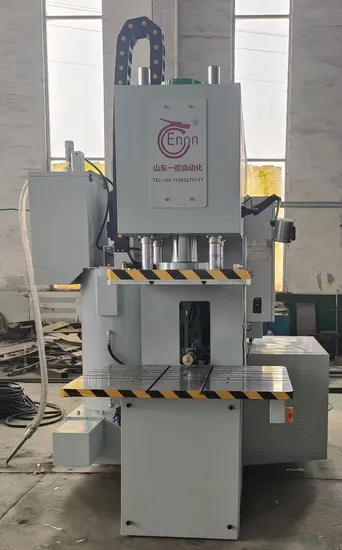

Single-station C-type wax injection machine 50T

Single-station C-type wax injection machine 50T

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DMZ-50CB-Y

$45000- /Piece/Pieces

45000USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-50CB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Spare Parts, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Main fatures and advantages：

1. Operation Interface

The operation interface features a large, intuitive touchscreen interface, ensuring easy operation. The screen displays real-time information such as operating parameters, temperature curves, and pressure curves, allowing operators to monitor the equipment's operating status at all times. The touchscreen supports multiple languages, including Chinese and English, to meet the needs of diverse users.

2. Safety Protection

The equipment is equipped with comprehensive safety features, including a safety door, emergency stop button, and overload protection. The safety door utilizes a photoelectric sensor. If the door is not closed, the equipment cannot be started, preventing operators from accidentally entering the hazardous area. Emergency stop buttons are located in multiple locations on the equipment. In an emergency, the operator can quickly press the button to immediately stop the equipment, ensuring the safety of both personnel and equipment.

2.Technical parameter：

Explain	Unit	YN-DMZ-50CB-Y
hydraulic oil tank	L	175
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Clamping force (max)	T	50
Mold use space(L×W×H)	mm	1000×1000×700
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

Note: The lower workbench of this Wax Injection Machine can be moved

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
