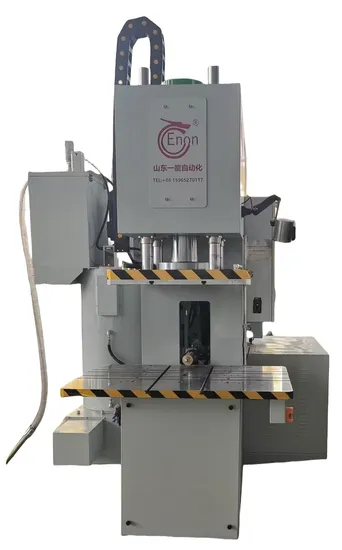

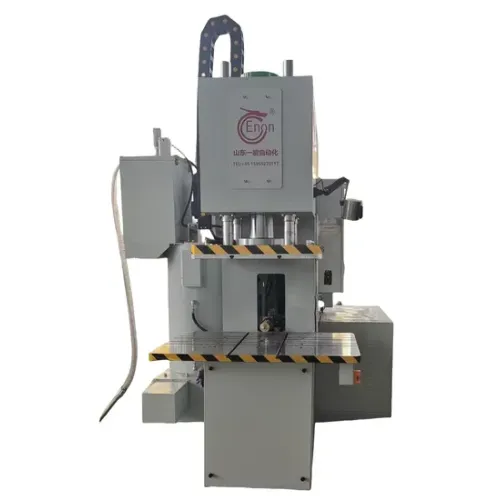

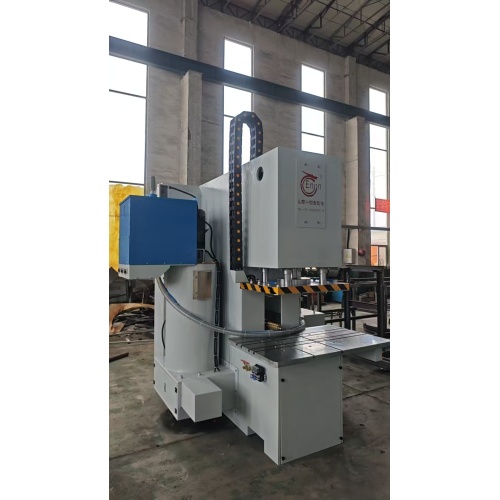

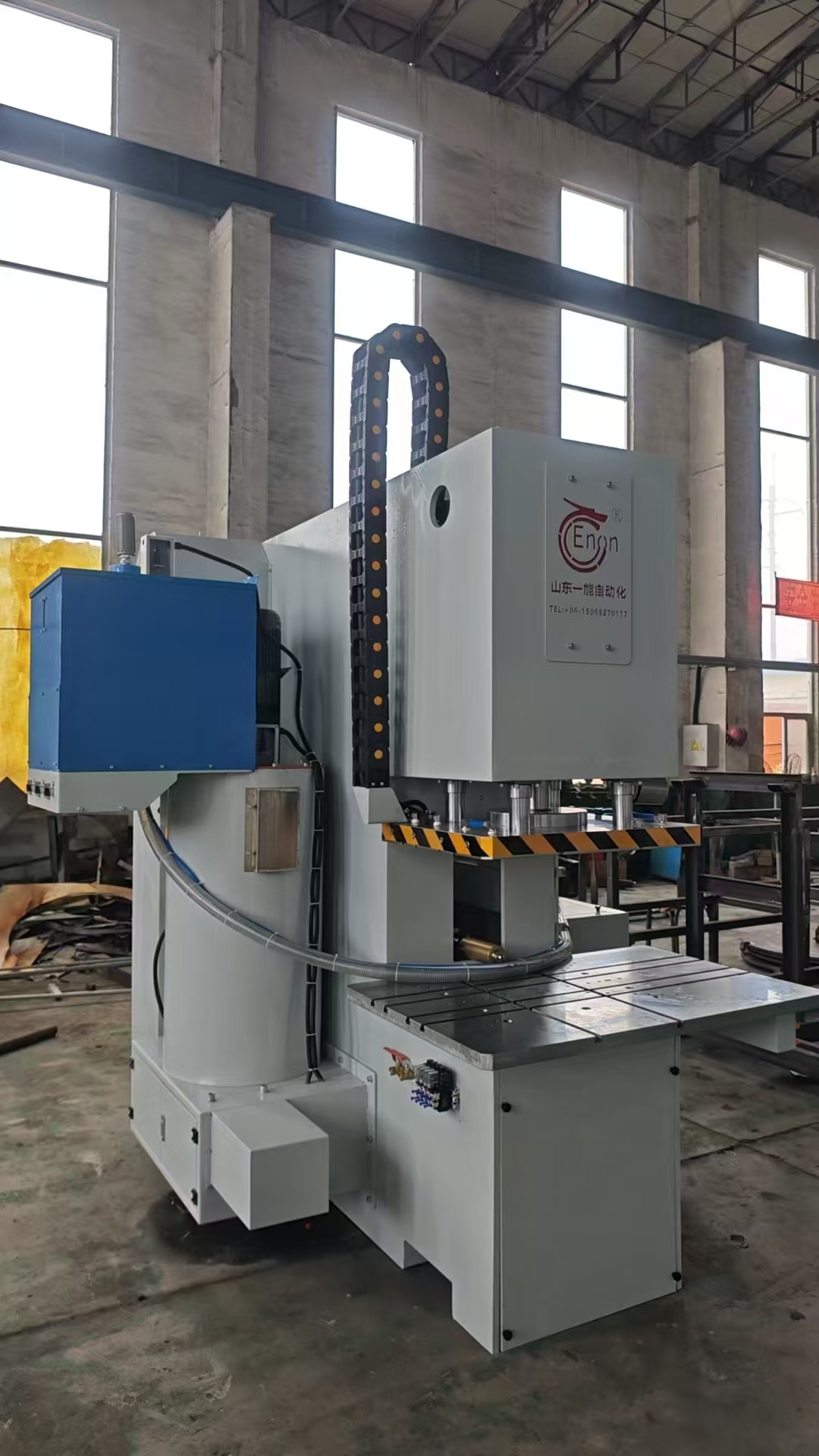

C-type single-station wax injection machine 50T

C-type single-station wax injection machine 50T

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DMZ-50CB-Y
option:	YN-DMZ-50CB-Y

$45000- /Piece/Pieces

45000USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-50CB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Main fatures and advantages：

1.The equipment is also equipped with an advanced PLC control system, featuring a high-performance programmable controller with powerful logic and data processing capabilities. The control system includes multiple built-in wax injection process parameter templates, allowing operators to directly access the corresponding templates based on different product models, greatly simplifying the operation process. The PLC control system also features comprehensive fault diagnosis capabilities, monitoring the operating status of each equipment component in real time. Upon detecting an abnormality, it immediately issues an alarm signal and displays the fault location and cause, facilitating prompt intervention by maintenance personnel.

2.Furthermore, the mold clamping section of the equipment utilizes a "C-shaped frame + quick-locating pin" structure. Constructed from a single piece of high-strength alloy steel and precision-machined and heat-treated, the C-shaped frame boasts a rigidity of 2000N/μm, providing stable support during mold closing and preventing deformation that could affect the accuracy of the wax pattern. The quick-locating pins utilize a conical surface for positioning, achieving a positioning accuracy of up to 0.02 mm. This eliminates the need for repeated calibration during mold assembly, significantly reducing mold change time.

2.Technical parameter：

Explain	Unit	YN-DMZ-50CB-Y
Clamping force (max)	T	50
hydraulic oil tank	L	175
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )
Mold use space(L×W×H)	mm	1000×1000×700
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100

Note: The lower workbench of this Wax Injection Machine can be moved

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
