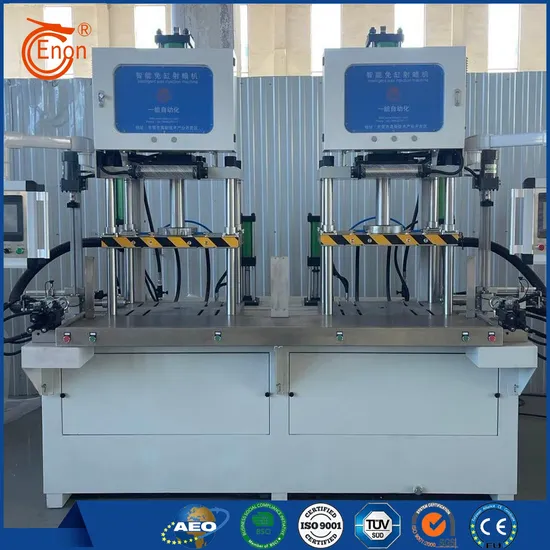

High-Performance Hydraulic Cylinder Free Wax Injector

High-Performance Hydraulic Cylinder Free Wax Injector

Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-SMZ-10LB-Y
option:

$217601-4 Piece/Pieces
$21300≥5 Piece/Pieces

$ 21300 - 21760 / Piece/Pieces

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2.Configuration instructions

1. The nozzle diameter of the dual-station Wax Injection Machine is 6-9 mm, and the wax injection rate is approximately 3-8 ml/s.

2. Electrical components include: Chint Electric; Delta (Taiwan) PLC programmer; and Omron (Japan) proximity switches.

3. The hydraulic system includes: Weiliang (Taiwan) circulating motor pump; Qunli (Taiwan) hydraulic motor; Gree (Taiwan) hydraulic pump; NOK (Japan) oil seals; Jinan Yuci Branch cylinder; and Yuken (Taiwan) hydraulic valves.

4. The main frame is welded from δ20 hot-rolled steel; the internal wax tank is made of 304 stainless steel; the wax cooling system utilizes a three-tube design, and the wax pipes are pickled.

5. The ejection function enables automatic demolding, making wax molds quick and easy to remove.

6. The dual-mold function allows one station to inject two sets of molds with different nozzle heights.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 150piece/Year

Certificate: ISO 9001:2015

Port: qingdao
