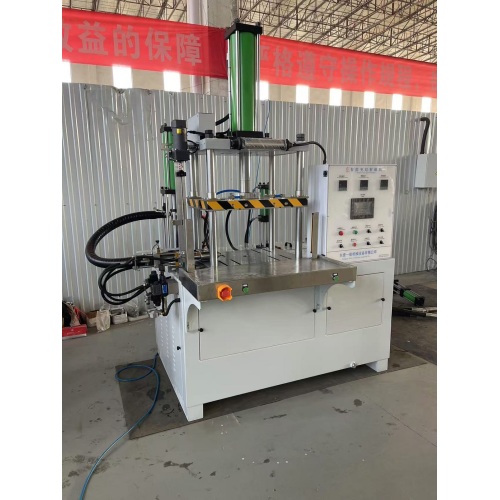

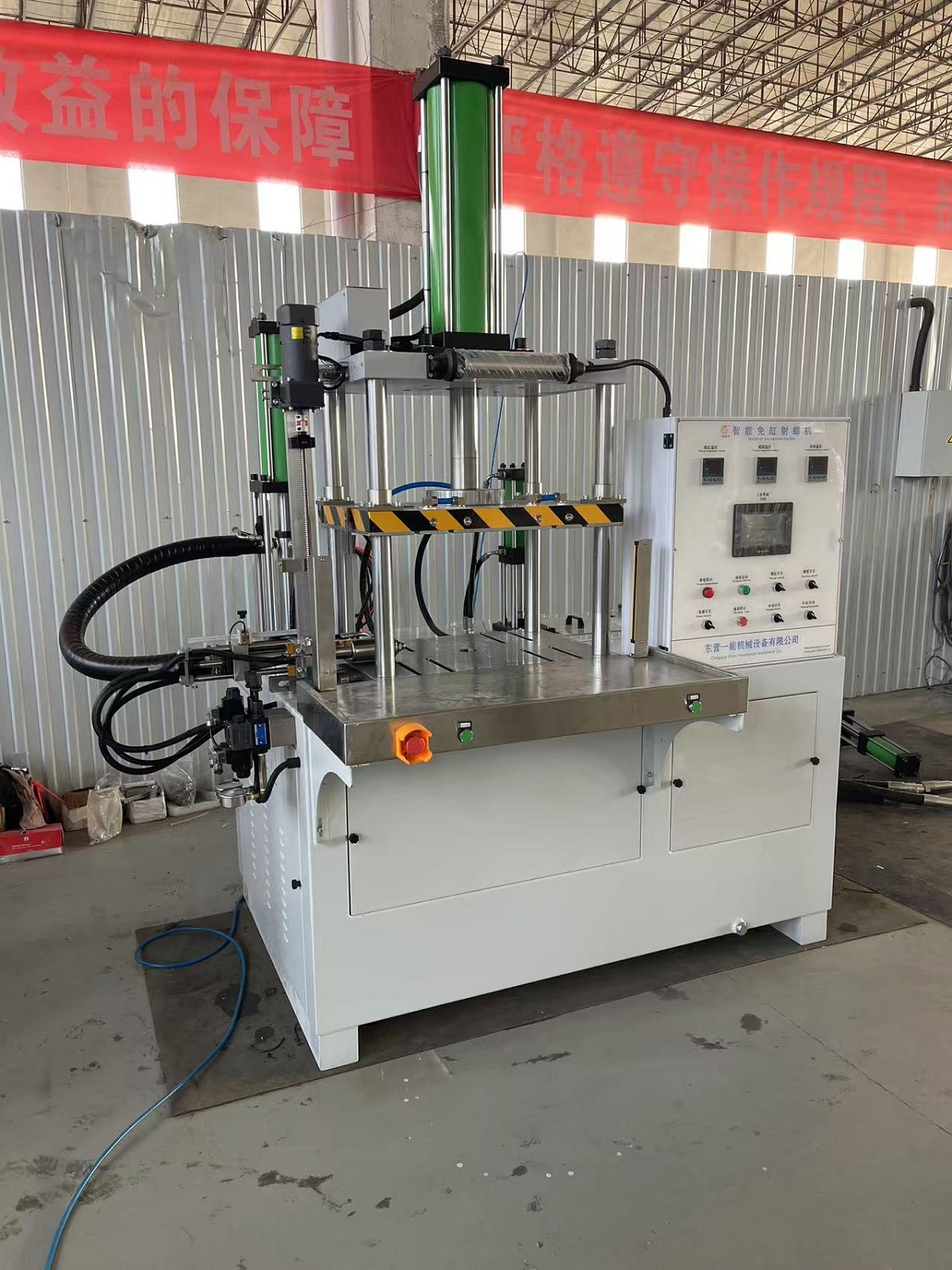

10T vertical single-station wax injection machine

10T vertical single-station wax injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DMZ-10LB-Y

$15880- /Piece/Pieces

15880USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-10LB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-DMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	430×460×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
hydraulic oil tank	L	130
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2,Description

1. The hydraulic system uses a Y-type three-phase asynchronous motor to control output flow and pressure, and supports manual adjustment.

2. Equipped with an ejector function, the mold can be designed with an automatic ejection mechanism for quick wax pattern removal.

3. Dual-mold operation is supported, allowing the same station to accommodate two molds with different nozzle heights.

4. The wax injection pressure adopts a two-stage control strategy and can be adjusted independently manually.

5. The nozzle advance and retraction movement is driven by the hydraulic system, while the vertical movement is controlled by a motor.

6. The wax storage tank is equipped with a temperature overload protection device, providing dual safety protection.

7. The wax storage tank is equipped with an automatic liquid level sensor, supporting automatic wax supply. Wax supply automatically stops when the wax reaches the upper limit, and both automatic and manual wax replenishment modes are available.
