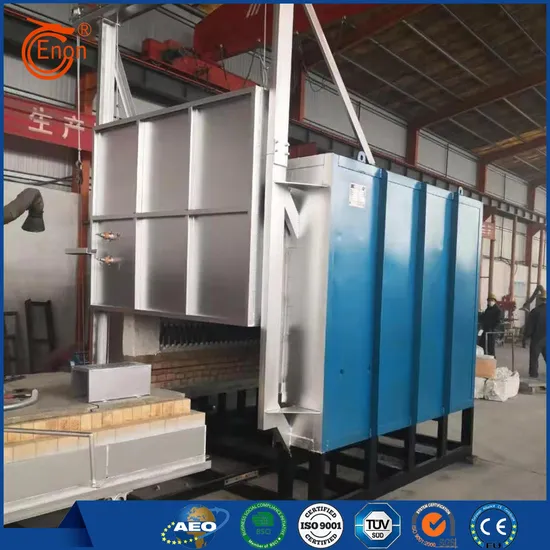

High Quality Box-Type Gas Roasting Furnace

High Quality Box-Type Gas Roasting Furnace

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Introduction of regenerative burner

In the investment casting process, shell firing is a crucial step. As the core equipment for this process, the trolley-type gas-fired shell firing furnace fulfills the crucial mission of providing qualified shells for subsequent pouring steps. Using heat generated by gas combustion, it precisely controls the temperature of the shells placed on the trolley and fires them, removing residual binders and other substances within the shells, enhancing their strength and permeability, and ensuring the quality of the castings. This furnace is widely used in industries relying on investment casting, such as aerospace, automotive manufacturing, hardware tools, and medical devices, to produce high-precision, complex castings.

2.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

3.Product advantages
Multi-stage precise temperature control: Supports customizable multi-stage firing process curves, which can be subdivided into heating (e.g., low-speed heating zone and high-speed heating zone to meet the heating requirements of the mold at different stages), insulation (setting multiple insulation platforms to ensure sufficient decomposition and burnout of the binder), and cooling stages. The temperature and time of each stage are precisely adjustable, adapting to a variety of mold materials such as silica sol molds, water glass molds, and composite molds, as well as the firing requirements of complex casting molds. For example, aircraft engine blade molds have complex structures and high precision requirements, requiring strict control of temperature changes at each stage. This equipment can accurately execute customized processes and improve the casting yield rate.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
