Advanced Blast Furnace with Dual Chamber Design

Advanced Blast Furnace with Dual Chamber Design

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Product Description

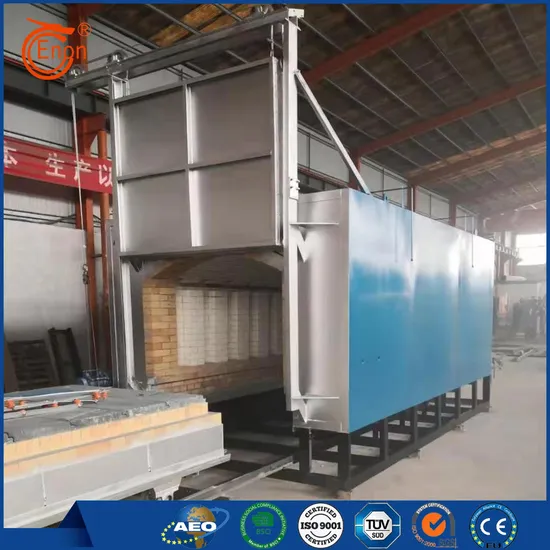

1. Furnace: Utilizing a steel frame structure, the outer layer is constructed of high-quality cold-rolled steel sheets, formed through bending and welding, providing excellent strength and rigidity. The inner layer is composed of refractory insulation materials, typically a composite masonry of ceramic fiber modules (thermal conductivity of 0.03-0.05 W/(m·K) at room temperature) and lightweight refractory bricks (bulk density of 0.8-1.2 g/cm³). Ceramic fiber modules are used for the furnace roof and walls, while lightweight refractory bricks are used for the furnace bottom and other areas. This creates a highly efficient insulation system, minimizing heat loss and reducing gas consumption. Precast refractory castables are installed inside the furnace walls to enhance thermal shock and wear resistance, protecting against the high-temperature airflow during shell firing.

2. Carriage: Consists of a carriage frame, refractory lining, and travel mechanism. The frame is welded with high-strength steel to bear the weight of the formwork; the refractory lining is paved with refractory bricks and castables, which match the refractory materials of the furnace body to ensure that the trolley is heated evenly and has high strength; the traveling mechanism includes a driving wheel, a driven wheel, a transmission motor, and a reducer. The driving wheel is made of cast steel and has been tempered. It is matched with the track (usually a QU-type lifting rail) to ensure that the trolley can enter and exit the furnace smoothly.

2.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0
Active furnace space	mm	(14001300700)

Note: The equipment specifications and models can be customized according to customer requirements.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
