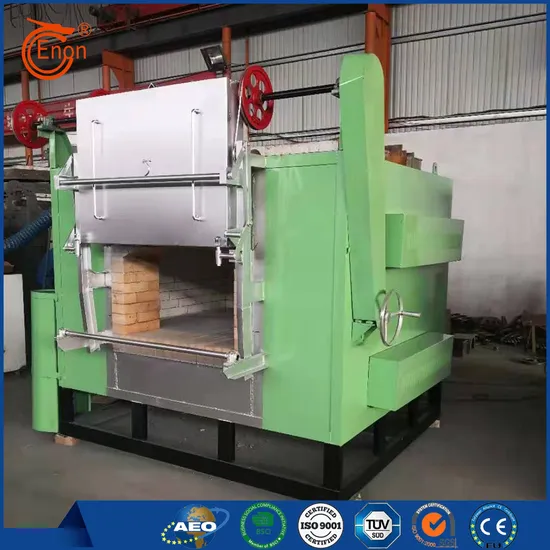

High-Quality Investment Casting Electric Baking Furnace

High-Quality Investment Casting Electric Baking Furnace

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao,Shandong,China
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Spare Parts, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0
Rated working temperature	ºC	≤1200

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages

1、Automation and Intelligent Control: Precious metal roasters are typically equipped with a PLC or DCS control system, enabling centralized control, monitoring, and automated management of the production process. This system automatically adjusts fuel consumption and burner ratio based on the flue gas temperature at the secondary combustion chamber outlet, ensuring stable and efficient combustion.

2、Heat Energy Utilization and Environmental Emissions: During precious metal roaster operation, heat energy can be effectively recovered, for example, in the form of hot water or steam, for energy reuse. Furthermore, the exhaust gas treatment system utilizes a multi-stage purification process, including quenching, bag filters, and spray towers, to effectively remove harmful substances from the flue gas and ultimately ensure that exhaust gas emissions meet standards.

3、This system provides a uniform and stable heating environment, ensuring uniform and consistent material processing. This contributes to improved product quality and performance.

Supply Ability & Additional Information

Packaging: wooden box

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Port: Qingdao,Shandong,China

Payment Type: T/T

Incoterm: FOB,CIF,EXW
