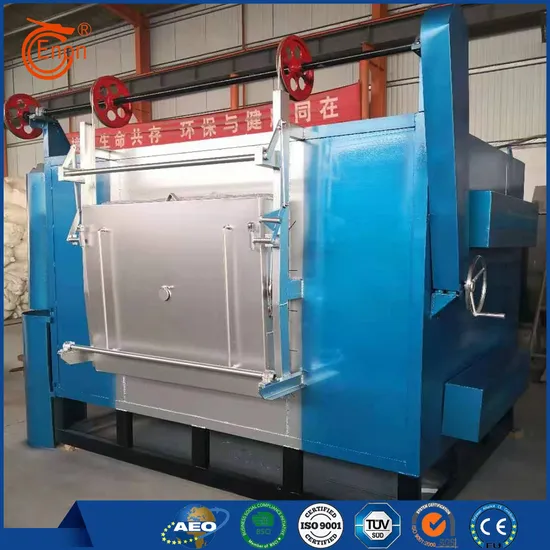

Advanced High Standard Electric Box Roasting Furnace

Advanced High Standard Electric Box Roasting Furnace

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	woodenbox
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
1. Precise Energy Conversion

Using U-shaped silicon-molybdenum rods or three-phase silicon-carbon rods as heating elements, the Joule effect converts electrical energy into radiant heat, achieving a conversion efficiency exceeding 95%. The heating elements are arranged three-dimensionally along the furnace, creating a uniform radiation field.

2. Dynamic Thermal Field Construction

A forced convection system (high-temperature resistant alloy fans) creates a vortex circulation of hot air within the furnace. Combined with the porous reflective structure of specially designed refractory bricks, this achieves a uniform temperature field with a temperature difference of ≤±8°C at all points within the furnace. 3. Phase Change Process Control

Low-Temperature Impurity Removal (Room Temperature to 450°C): Temperature control rate of 2-5°C/min slowly removes moisture and wax residue.

Medium-Temperature Oxidation (450-800°C): Introduces a trace, controlled oxygen atmosphere to catalyze the decomposition of organic matter.

High-Temperature Sintering (800-1150°C): Mullite crystals form, forming a ceramic bonding network.

Pouring and Insulation (Pouring and Insulation) Stage: Maintains constant temperature with a temperature fluctuation of ≤±3°C.

4. Intelligent Operation and Maintenance System

Equipped with a bus control system, it monitors changes in heating element resistance in real time, automatically compensates for power loss due to aging, and supports remote process parameter tuning and fault diagnosis.

Supply Ability & Additional Information

Packaging: woodenbox

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Payment Type: T/T

Incoterm: FOB,EXW
