ISO Approved High-Temperature Investment Casting System

ISO Approved High-Temperature Investment Casting System

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Machinery Repair Shops, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

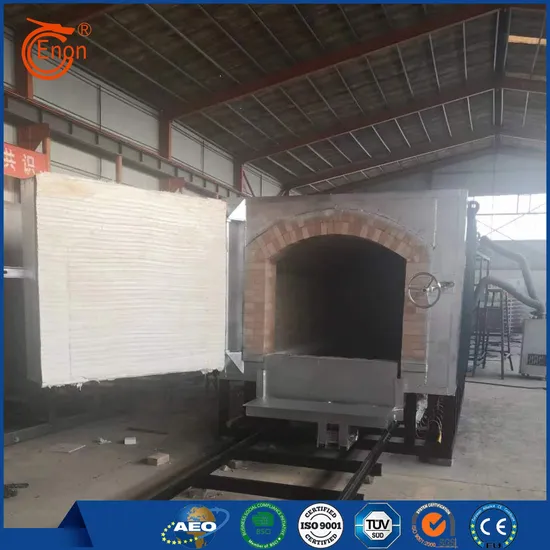

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
2.1 Large Loading Capacity & Strong Heat Treatment Capability for Large Workpieces: The equipment has a large load-bearing capacity, outstanding heat treatment capability for large workpieces, high operating efficiency and low operating costs.
2.2 Full Fiber Furnace Lining for Better Thermal Insulation Performance: The furnace lining is made of a complete fiber structure. Compared with traditional brick-built furnace chambers, it effectively improves the thermal insulation performance of the equipment and reduces heat loss.
2.3 Easy Installation for Small and Medium-Sized Furnaces: Small and medium-sized furnaces do not require separate foundation construction. The furnace body is integrated with a rail structure and can be directly put into use after being placed on a level ground.
2.4 Multi-Zone Heating for Accurate and Uniform Temperature Control: Large-scale electric furnaces adopt multi-zone heating. To improve the temperature uniformity in the furnace chamber, heating elements are installed at the furnace door, rear wall and bogie. High-power electric furnaces are equipped with multiple automatic temperature control cabinets, which realize automatic temperature control for each heating zone respectively.
2.5 Automatic Operation & Convenient Monitoring: The operation of the furnace door and bogie is fully automatic. Each electrical control box is equipped with several instruments and automatic monitoring devices, which can provide real-time monitoring of equipment operating status and data feedback

Supply Ability & Additional Information

Packaging: wooden box package

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: ISO9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,EXW
