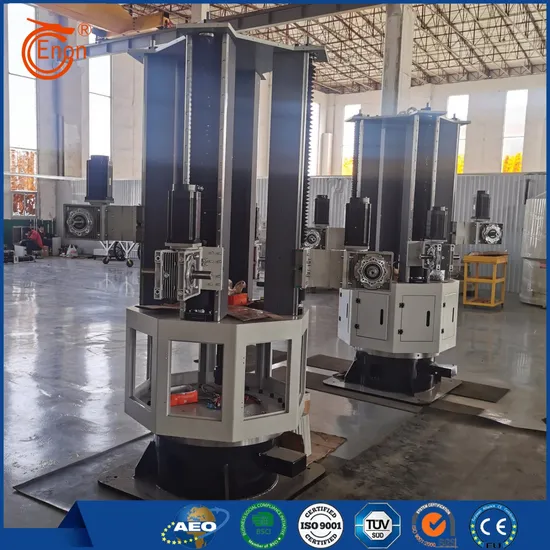

Four-headed and eight-arm shell-making robot
Four-headed and eight-arm shell-making robot
Four-headed and eight-arm shell-making robot
Four-headed and eight-arm shell-making robot
Four-headed and eight-arm shell-making robot
Four-headed and eight-arm shell-making robot
Four-headed and eight-arm shell-making robot
Four-headed and eight-arm shell-making robot

Four-headed and eight-arm shell-making robot

Payment Type:T/T
Incoterm:FOB,CIF,EXW
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land
Port:Q
  • $44120- /Piece/Pieces

44120USD

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
Product Attributes

Model No.YN-JXS-4/8

BrandEnon

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description




default name

1,technical parameter

Pick up mode Manual hanging
Outline dimension of single string shell mold $450mmXH500mm
Center distance between two string shell moulds 500mm
Weight of single string shell mold ≤30kg
Equipment structure Three arms and six hands
work efficiency ≥1 string/20-25s
Rotation angle of main column 0-360°(Continuous rotation)
Rotation index of main column 120°/3 stations
Rotation speed of main column 90 °/0-10s (adjustable)
Movement angle range of clamping module -10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station 0-700mm (adjustable)
Lifting rotation speed 180 °/0-10 seconds (adjustable)
Swing rotation speed 180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece 360 ° (continuous rotation)
Self rotation speed of workpiece 5-40 rpm (adjustable)

Technical indicators

Technical parameter

Fixture mode Pneumatic automatic locking
Quickly replace tooling Quickly replace adaptive clamps according to different hooks


2,Benefit description


Introducing our latest automation technology innovation—the Four-Head Shell Mold Robot.
This advanced robot is designed to streamline the shell mold production process and improve the efficiency and productivity of manufacturing operations.
Equipped with four heads, it can create multiple shell molds simultaneously, reducing the time and labor required for production.
The eight-arm robot, equipped with advanced automation features, ensures precision and consistency in each mold.
Key Features: - Eight arms for automation - Four heads create molds simultaneously - Quick and precise production of shell molds - Ideal for large-scale production. Details: The Four-Head Shell Mold Robot is a cutting-edge solution for companies to streamline their production processes.
By automating the shell mold creation process, this robot significantly improves efficiency and reduces labor costs.
The eight arms work in perfect sync, creating high-quality shell molds quickly and accurately. The four heads allow for the simultaneous production of multiple molds, making it ideal for industries requiring high volumes of shell molds, such as the automotive, aerospace, and manufacturing industries. Application scenarios: This robot can be combined with other automation equipment to create a seamless production line. It is ideal for industries requiring large volumes of shell molds and helps companies save time and resources. All in all, the four-head housing manufacturing robot arm is a game-changer for the manufacturing industry, and its advanced automation capabilities will revolutionize production processes. Upgrade your manufacturing operations with this cutting-edge robot arm today!

Supply Ability & Additional Information

PackagingWooden box packaging

Productivity120piece/year

TransportationOcean,Land

Place of OriginChina

Supply Ability120piece/year

CertificateISO 9001:2015

PortQ

Payment TypeT/T

IncotermFOB,CIF,EXW
