Precision Casting Shell Making with Industrial Robot Arms
Precision Casting Shell Making with Industrial Robot Arms
Precision Casting Shell Making with Industrial Robot Arms
Precision Casting Shell Making with Industrial Robot Arms
Precision Casting Shell Making with Industrial Robot Arms
Precision Casting Shell Making with Industrial Robot Arms
Precision Casting Shell Making with Industrial Robot Arms
Precision Casting Shell Making with Industrial Robot Arms

Precision Casting Shell Making with Industrial Robot Arms

Payment Type:T/T
Incoterm:FOB,CIF,EXW
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land
Port:Qingdao
Model:
  • YN-JXS-6/3
option:
  • YN-GXS-6/3
  • $38240- /Piece/Pieces

38240USD

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
Product Attributes

Model No.YN-JXS-6/3

BrandEnon

Place Of OriginChina

Old And NewNew

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeNew Product 2020

Core Component Warranty Period1 Year

Core ComponentsPlc

Warranty Period1 Year

Core Selling PointEasy To Operate

Out-of-warranty ServiceVideo Technical Support, Spare Parts, Online Support, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Applicable IndustryManufacturing Plant, Other

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: wooden box
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

default name
1.Technical parameter
Movement angle range of clamping module -10 ° to 135 ° (centered on the vertical line of the ground plane)
Center distance between two string shell moulds 500mm
Weight of single string shell mold ≤30kg
work efficiency ≥1 string/20-25s
Rotation index of main column 120°/3 stations
Rotation speed of main column 90 °/0-10s (adjustable)

Center distance between two string shell moulds

Center distance between two

Up and down (z-axis) stroke of station 0-700mm (adjustable)
Lifting rotation speed 180 °/0-10 seconds (adjustable)
Swing rotation speed 180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece 360 ° (continuous rotation)
Self rotation speed of workpiece 5-40 rpm (adjustable)
Pick up mode Manual hanging
Fixture mode Pneumatic automatic locking
Quickly replace tooling Quickly replace adaptive clamps according to different hooks

2.Product Description

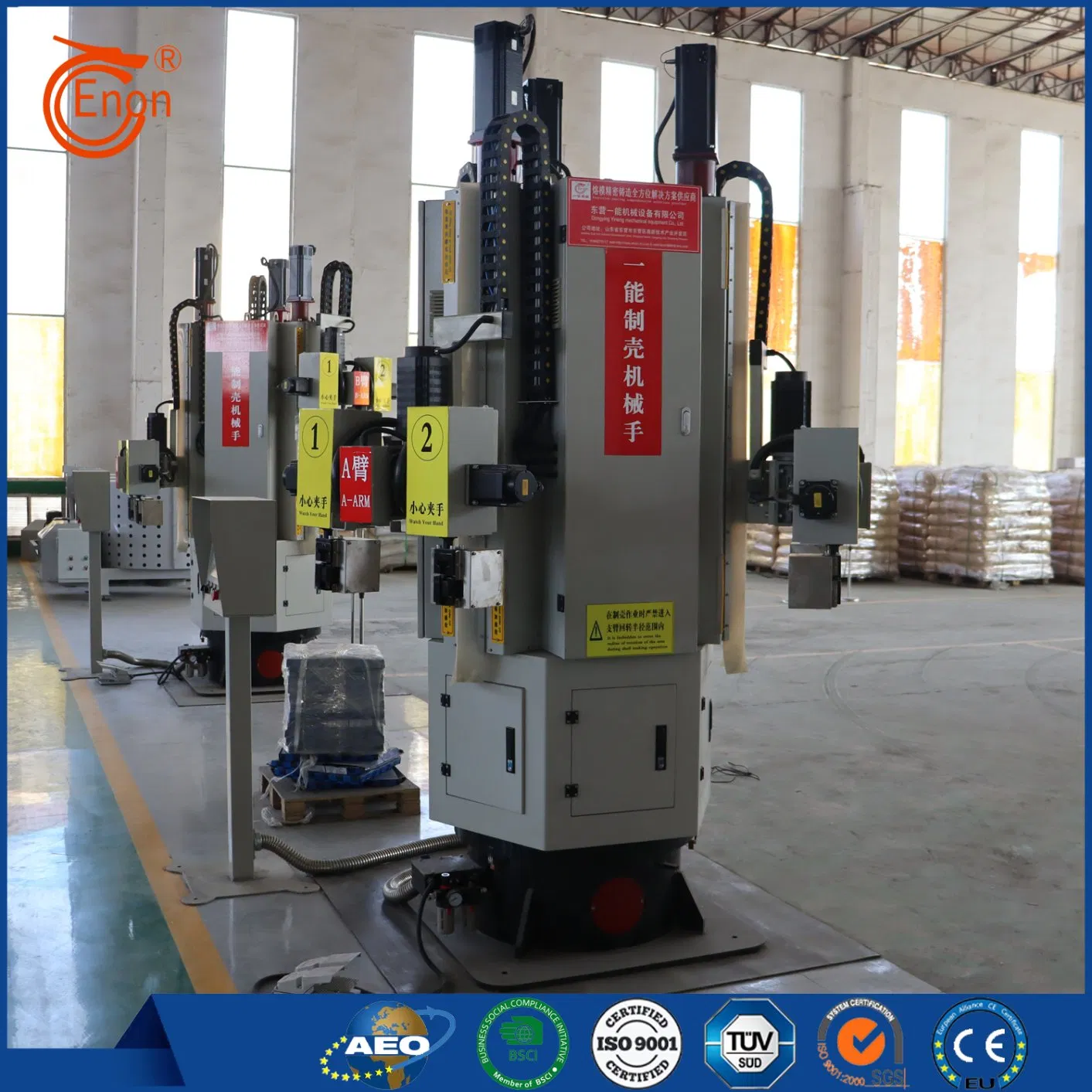

The Precision Casting Robot Arm is a crucial piece of equipment in the foundry sector, uniquely crafted for the shell-forming procedure. Boasting cutting-edge tech, this smart robotic arm enhances both efficiency and precision in shell manufacturing.
Main Characteristics:
Accurate Casting Performance: It guarantees exact movements and positioning, leading to castings of superior quality.
Smart System Integration: By connecting with intelligent setups, it achieves automated running and instant supervision.
Versatile Use: Fits various shell-making jobs within the foundry field.
Sturdy Build: Made from top-grade materials, ensuring it works well for a long time.
Simple Incorporation: Works with current production lines, allowing for smooth application.
This robotic arm is perfect for shell-making in foundries, metal processing plants, and similar facilities. It optimizes the production flow, cuts down on manual work, and boosts overall output. Users commend it for being dependable, fast, and accurate in shell-making. They also like its easy-to-use interface and trouble-free operation, which make it a precious addition to production sites.
In summary, the precision casting robot arm will bring a significant change to the foundry industry, offering precise, efficient, and reliable assistance for shell manufacturing operations.
Supply Ability & Additional Information

Packagingwooden box

Productivity120piece/year

TransportationOcean,Land

Place of OriginChina

Supply Ability120piece/year

CertificateISO 9001:2015

PortQingdao

Payment TypeT/T

IncotermFOB,CIF,EXW
