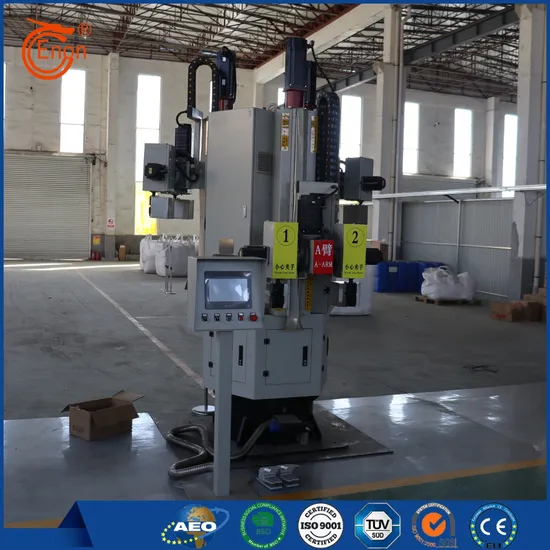

Intelligent Six-Arm Robot for Precision Shell Making

Intelligent Six-Arm Robot for Precision Shell Making

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-3/6
option:	YN-JXS-3/6

$38240- /Piece/Pieces

38240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-3/6

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Outline dimension of single string shell mold	$450mmXH500mm
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

2,Benefit description

This industrial robot is suitable for a wide range of applications including housing manufacturing, assembly, and pick-and-place tasks. Its versatility and efficiency make it a valuable asset in any industrial environment.

Precision Six-Arm Industrial Robot for Housing Manufacturing Overview: This precision six-arm industrial robot is designed for a wide range of applications, including housing manufacturing, assembly, and pick-and-place tasks. Its advanced technology and efficiency make it an invaluable asset in any industrial environment. Key Features: - Three arms with six hands for increased flexibility and productivity - Precision engineering ensures high accuracy and repeatability - Specifically designed for housing manufacturing, delivering exceptional performance - Advanced technology for seamless integration with existing systems - Rugged, durable, and reliable construction Detailed Description: The industrial robot features a three-arm design with six hands, providing unmatched precision and efficiency in shell fabrication. It is equipped with a variety of technical parameters to optimize performance, including a rotation angle of 0-360°, movement angle range of -10° to 135°, and self rotation speed of 5-40 rpm. The equipment structure is designed for maximum efficiency, with a work efficiency of ≥1 string/20-25s. The robot is capable of quickly replacing tooling and adaptive clamps according to different hooks, enhancing its versatility and usability. Usage Scenarios: This industrial robot is suitable for a wide range of applications, including housing manufacturing, assembly, and pick-and-place tasks.

This cutting-edge industrial manipulator features three arms with six hands, providing unmatched precision and efficiency in shell fabrication. Key Features: - Three arms, six arms for increased flexibility and productivity - Precision engineering ensures high accuracy and repeatability - Designed specifically for housing manufacturing, delivering exceptional performance - Advanced technology for seamless integration with existing systems - Rugged, durable, and reliable construction This precision six-arm industrial robot is suitable for a wide range of applications, including housing manufacturing, assembly, and pick-and-place tasks. Its versatility and efficiency make it a valuable asset in any industrial environment.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
