Model No.: YN-JXS-4/8
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Other, Manufacturing Plant
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Technical indicators | Technical parameter |
| Outline dimension of single string shell mold | $450mmXH500mm |
| Center distance between two string shell moulds | 500mm |
| Weight of single string shell mold | ≤30kg |
| Equipment structure | Three arms and six hands |
| work efficiency | ≥1 string/20-25s |
| Rotation angle of main column | 0-360°(Continuous rotation) |
| Rotation index of main column | 120°/3 stations |
| Rotation speed of main column | 90 °/0-10s (adjustable) |
| Movement angle range of clamping module | -10 ° to 135 ° (centered on the vertical line of the ground plane) |
| Up and down (z-axis) stroke of station | 0-700mm (adjustable) |
| Lifting rotation speed | 180 °/0-10 seconds (adjustable) |
| Swing rotation speed | 180 °/0-10 seconds (adjustable) |
| Self rotation angle of workpiece | 360 ° (continuous rotation) |
| Self rotation speed of workpiece | 5-40 rpm (adjustable) |
| Pick up mode | Manual hanging |
| Fixture mode | Pneumatic automatic locking |
| Quickly replace tooling | Quickly replace adaptive clamps according to different hooks |

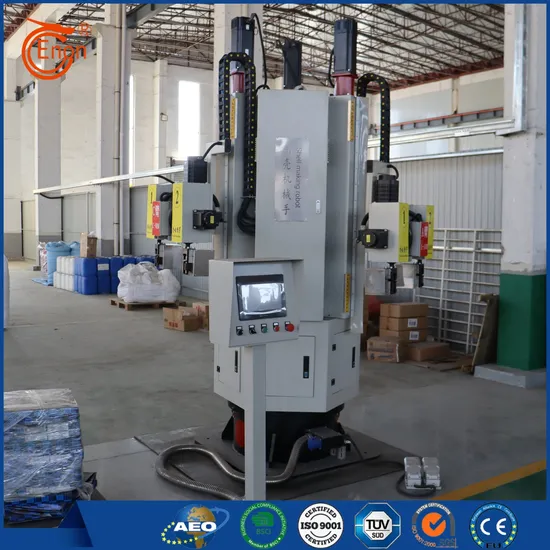

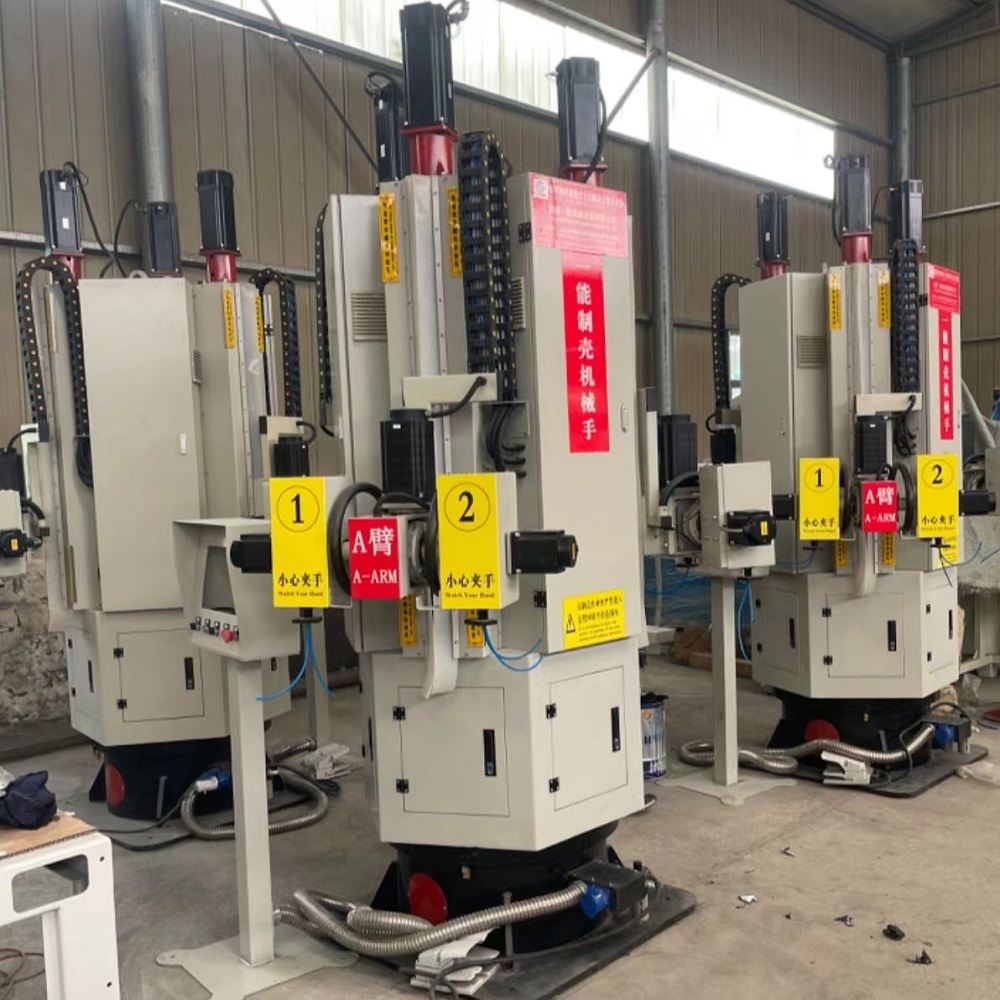

Introducing our Efficient Pneumatic Manipulator for Shell Molding, featuring a 3500mm High Speed Shell Manipulator Arm. This Shell Making Pneumatic Manipulator is designed to streamline the shell molding process, increasing efficiency and productivity.
Key Features:
Completion and Unloading: After the above steps, the shell production process is complete. The robot rotates the shell back to the loading and unloading station, where a worker removes the shell and hangs it on the drying line. Alternatively, an auxiliary robot arm automatically removes the shell and hangs it back on the drying line. The robot then resumes its work cycle.
Technical Features
High Efficiency: The three-head, six-arm design enables the robot to handle multiple shells simultaneously, increasing production efficiency by over three times compared to traditional single-arm robots. Furthermore, the use of a turntable-type multi-station structure further optimizes the workflow, reducing the robot's switching time and waiting time between stations, significantly improving the efficiency of the entire shell production line.
Packaging: Wooden box packaging
Productivity: 120piece/year
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 120piece/year
Certificate: ISO 9001:2015
Port: Qingdao
Payment Type: T/T
Incoterm: FOB,CIF,EXW
