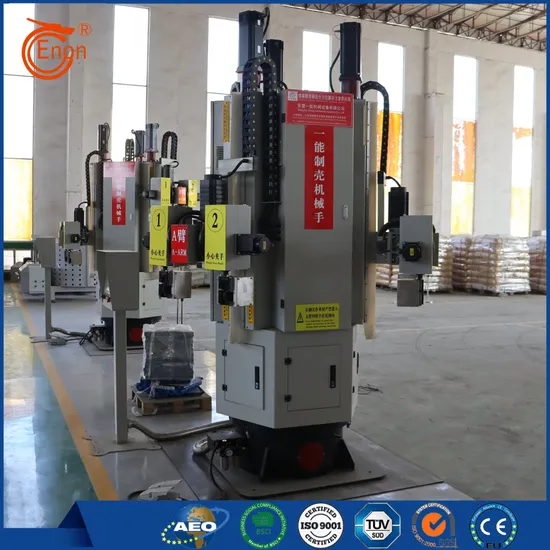

Shell Making Manipulator Arm

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-4/8
option:	YN-JXS-4/8

$44120- /Piece/Pieces

44120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-4/8

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Outline dimension of single string shell mold	$450mmXH500mm
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

2,Benefit description

Introducing our latest product, the Single-Line Shell Mold Machine! Designed with precision and efficiency in mind, this innovative machine is the perfect solution for your manufacturing needs.

Technical Parameters:

Single-Line Shell Mold Dimensions: 450mm x 500mm

Distance between Two-Line Shell Mold Centers: 500mm

Single-Line Shell Mold Weight: ≤30kg

Working Efficiency: ≥1 line/20-25 seconds

Main Column Rotation Angle: 0-360° (Continuous Rotation)

Main Column Rotation Index: 120°/3 Stations

Main Column Rotation Speed: 90°/0-10 seconds (Adjustable)

Clamping Module Motion Range: -10° to 135°

Z-Axis Travel: 0-700mm (Adjustable)

Lifting Speed: 180°/0-10 seconds (Adjustable)

Oscillating Speed: 180°/0-10 seconds (Adjustable)

Workpiece Rotation Angle: 360° (Continuous Rotation)

Workpiece Rotation Speed: 5-40 rpm (adjustable)

Pickup Method: Manual Hanging

Clamping Method: Pneumatic Automatic Locking

Quick Tooling Change: Adapts to different hooks

Advantages:

Experience the convenience and efficiency of our single-line shell mold machine. With its advanced features and high-quality construction, this machine will streamline your production process and increase output. Say goodbye to time-consuming setup and enjoy the seamless operation of our innovative solution.

Don't miss this opportunity to enhance your manufacturing capabilities. Choose our single-line shell mold machine today and invest in the production technology of the future!

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW
