Automation Arm for Shell Making

Payment Type:	L/C,T/T
Incoterm:	FOB,EXW,CIF
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-4/8
option:	YN-JXS-4/8

$44120- /Piece/Pieces

44120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-4/8

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Field Maintenance And Repair Service, Video Technical Support, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Outline dimension of single string shell mold	$450mmXH500mm
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

2,Benefit description

Efficient Production: A series of shell molds can be produced every 20 seconds on average.

Improved Product Quality: Consistent and uniform production provides greater stability.

Reduced Labor Intensity: No physically strong operators are required, especially for reinforcement layers.

Improved Work Environment: Sealed dust removal enhances operator comfort.

Economically Efficient Production: Continuous production saves space and energy.

Compatibility: Suitable for all types of drying lines.

Energy-Saving Design: A new slurry drum design consumes 40% less energy than traditional models.

Detailed Description:

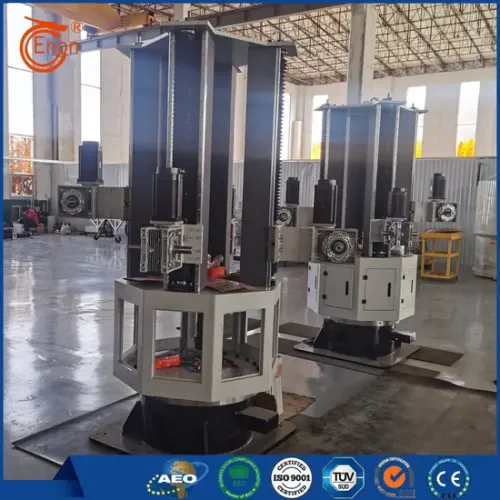

The automatic shell mold robot features a three-arm, six-hand structure with a range of adjustable parameters for optimal performance. It features continuous rotation, adjustable lifting and rotation speeds, and various movement angles, ensuring precise and efficient operation.

Application Scenario:

This robot is ideal for industrial environments requiring high-speed, high-quality shell mold production. It can be seamlessly integrated into existing production lines, improving efficiency and output.

User Reviews:

Customers have praised the automatic shell mold robot for its reliability, ease of use, and significant productivity improvements. Many have noted its cost savings and positive impact on product quality.

FAQs:

Q: Can the robot be customized to meet specific production needs?

A: Yes, the robot can be adjusted to meet different manufacturing requirements.

Q: Is equipment operation training provided?

A: Yes, we provide comprehensive operator training to ensure smooth operation.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015
