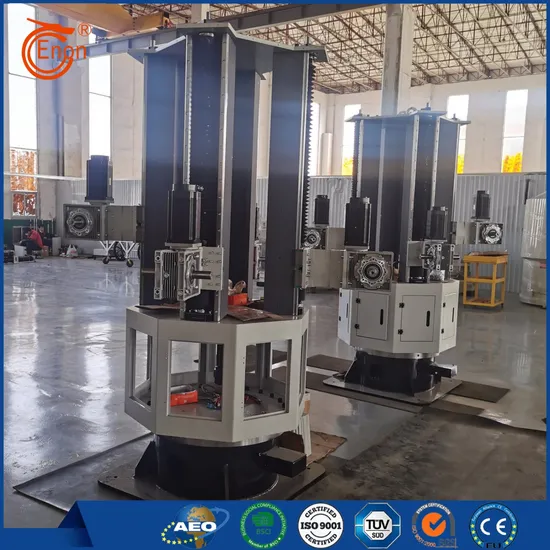

Advanced Robot Arm Six-Arm Shell

Payment Type:	L/C,T/T
Incoterm:	FOB,EXW,CIF
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-3/6
option:	YN-JXS-3/6

$38240- /Piece/Pieces

38240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-3/6

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Rotation speed of main column	0-360°(Continuous rotation)
Self rotation angle of workpiece	360 ° (continuous rotation)
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Technical indicators	Technical parameter
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Center distance between two string shell moulds	Center distance between two
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

2,Benefit description

Introducing the Intelligent Six-Arm Robotic Arm, the latest innovation in robotics technology.

This cutting-edge robot arm is designed with advanced features to provide superior performance and durability.

The six-arm robotic system offers enhanced flexibility and precision, making it suitable for a wide range of tasks.

Key Features: - Robotic housing design for superior performance and durability

- Six-arm robotic system for enhanced flexibility and precision - Intelligent technology for efficient and precise operation - Advanced sensors for real-time feedback and control

- User-friendly interface for easy programming and operation Whether you're in manufacturing, R&D, or any industry requiring advanced robotics, the Intelligent Six-Arm Robotic Arm is the ideal solution. Its versatility and reliability make it suitable for various applications. Experience the future of robotics with this advanced technology and elevate your operations to stay ahead of the competition. Dimensions: 450mm X 500mm Weight: ≤30kg Center Distance: 500mm Work Efficiency: ≥1 string/20-25s Rotation Angle: 0-360° Rotation Speed: 0-10s (adjustable) Lifting Stroke: 0-700mm (adjustable) Self Rotation Speed: 5-40 rpm (adjustable) Pick up Mode: Manual hanging Fixture Mode: Pneumatic automatic locking Enhance your productivity and efficiency with the Intelligent Six-Arm Robotic Arm. Upgrade your operations with this state-of-the-art technology.

Whether you need to streamline production processes, optimize warehouse operations, or enhance surgical procedures, our Six-Arm Manipulator System is the perfect solution.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: Qingdao

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: L/C,T/T

Incoterm: FOB,EXW,CIF
