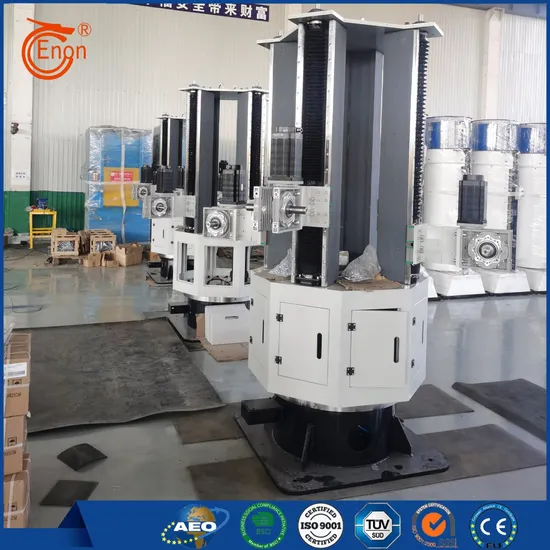

Three-head six-arm special manipulator

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-3/6
option:	YN-JXS-3/6

$38240- /Piece/Pieces

38240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-3/6

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Outline dimension of single string shell mold	$450mmXH500mm
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

2,Benefit description

Dive into a detailed description of our industrial robotic manipulator arm. This cutting-edge technology is revolutionizing how industries operate, providing seamless solutions for complex tasks. With its advanced features and rugged construction, this manipulator arm is a must-have for any industrial facility.

Whether you're in manufacturing, logistics, or research, an industrial robotic manipulator arm can meet your needs. Its industrial housing ensures smooth operation and precise movement, allowing it to seamlessly integrate into your workflow.

Improve production efficiency with the innovative technical parameters of the shell mold machine. The equipment is designed with a three-arm, six-hand structure to efficiently produce a series of shell molds every 20 seconds on average. The main column allows for continuous rotation from 0 to 360 degrees, with a rotation index of 120 degrees per 3 stations. The movement angle range of the clamping module is from -10 to 135 degrees, providing flexibility in operations. The machine features a rapid tooling change system, allowing for quick adaptation to different hooks. With a self-rotation angle of 360 degrees and a speed of 5-40 rpm, the workpiece can be efficiently processed. The equipment also includes manual hanging and pneumatic automatic locking fixtures for ease of operation. Overall, this shell mold machine enhances productivity and streamlines the manufacturing process, making it an ideal solution for various production scenarios. Experience improved efficiency and precision with this advanced equipment.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120 piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120 piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW
