Home> Products> Lost Wax Investment Casting Equipment> Shell Making Equipment> Innovative Six-Hand Industrial Robot Arm

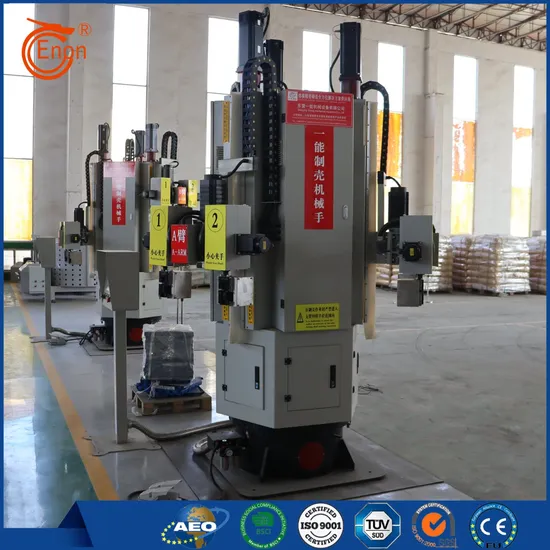

Innovative Six-Hand Industrial Robot Arm
Innovative Six-Hand Industrial Robot Arm
Innovative Six-Hand Industrial Robot Arm
Innovative Six-Hand Industrial Robot Arm
Innovative Six-Hand Industrial Robot Arm
Innovative Six-Hand Industrial Robot Arm
Innovative Six-Hand Industrial Robot Arm
Innovative Six-Hand Industrial Robot Arm

Innovative Six-Hand Industrial Robot Arm

Payment Type:T/T,L/C
Incoterm:FOB,CIF,EXW
Min. Order:1 Piece/Pieces
Transportation:Land,Ocean
Port:Qingdao
Model:
  • YN-JXS-3/6
option:
  • YN-JXS-3/6
  • $38240- /Piece/Pieces

38240USD

  • Product Attributes
  • Packaging & Delivery
  • Product Description
  • Supply Ability & Additional Information
Product Attributes

Model No.YN-JXS-3/6

BrandEnon

Place Of OriginChina

Old And NewNew

Video Factory InspectionProvided

Mechanical Test ReportProvided

Marketing TypeNew Product 2020

Core Component Warranty Period1 Year

Core ComponentsPlc

Warranty Period1 Year

Core Selling PointEasy To Operate

Out-of-warranty ServiceVideo Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets)None

Showroom Location (in Which Countries Are There Sample Rooms Overseas)None

Applicable IndustryOther, Manufacturing Plant

Packaging & Delivery
Selling Units: Piece/Pieces
Package Type: Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

default name

1,technical parameter

Technical indicators Technical parameter
Outline dimension of single string shell mold $450mmXH500mm
Center distance between two string shell moulds 500mm
Weight of single string shell mold ≤30kg
Equipment structure Three arms and six hands
work efficiency ≥1 string/20-25s
Rotation angle of main column 0-360°(Continuous rotation)
Rotation index of main column 120°/3 stations
Rotation speed of main column 90 °/0-10s (adjustable)
Movement angle range of clamping module -10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station 0-700mm (adjustable)
Lifting rotation speed 180 °/0-10 seconds (adjustable)
Swing rotation speed 180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece 360 ° (continuous rotation)
Self rotation speed of workpiece 5-40 rpm (adjustable)
Pick up mode Manual hanging
Fixture mode Pneumatic automatic locking
Quickly replace tooling Quickly replace adaptive clamps according to different hooks

2,Benefit description
Boost your production efficiency with our advanced robot! This machine is designed to streamline the shell mold making process, producing a series of molds every 20 seconds on average. Our robot focuses on automation, ensuring consistency and uniformity in the production process, thereby reducing product quality and production variability.

Our robot not only improves product quality but also reduces labor intensity by eliminating the need for physically demanding operators. Sealed dust removal creates a clean and safe working environment for operators, while the innovative design reduces electricity consumption compared to traditional machines.

Using our robot, you can significantly reduce production costs and increase output. This machine is compatible with various drying lines and offers quick mold changes for added convenience. With its focus on precision and efficiency, our robot is the ideal solution for your manufacturing needs.
Experience the benefits of our robot today and revolutionize your production process!

Our robots not only improve product quality but also reduce operator workload. A sealed dust removal system creates a clean and safe working environment for operators, and their innovative design reduces power consumption compared to traditional machines. Using our robots, you can significantly reduce production costs and increase output. Compatible with various drying lines, they offer quick mold changes for added convenience. Our robots, with their focus on precision and efficiency, are the ideal solution for your manufacturing needs. Experience the benefits of our robots today and revolutionize your production processes!
Supply Ability & Additional Information

PackagingWooden box packaging

Productivity120piece/year

TransportationLand,Ocean

Place of OriginChina

Supply Ability120piece/year

CertificateISO 9001:2015

PortQingdao

Payment TypeT/T,L/C

IncotermFOB,CIF,EXW
