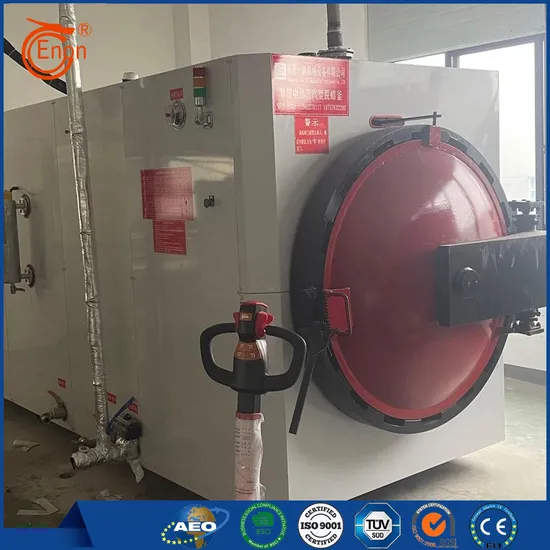

Automatic Wax Tree Dewaxing Machine for Investment Casting

Automatic Wax Tree Dewaxing Machine for Investment Casting

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,CFR,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	QINGDAO
Model:	YN-DTF-1400Z

$26180- /Piece/Pieces

26180USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1400Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	WOODEN BOX
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Model	YN-DTF-1400Z
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 243kw

2. Product Description

The DTF series electric steam dewaxing kettle is a fully integrated system engineered by our company to serve the precision casting sector. Designed specifically for high-efficiency dewaxing of medium-scale shell molds, it incorporates state-of-the-art technologies drawn from leading global and domestic equipment. Uniting superior safety, operational reliability, and user-oriented practicality, the system ensures swift heating, consistent and efficient wax removal, and steady performance throughout production cycles. As an eco-compliant dewaxing solution, it also sets a benchmark in thermal efficiency for modern industrial applications.

3. Main Features and Advantages

3.1 Utilizing a double-layer pressure vessel structure. The outer kettle maintains constant high temperature and pressure during operation, maintaining an inner surface temperature above 150°C. This effectively prevents condensation in the inner kettle and ensures rapid thermal equilibrium. This structure significantly reduces high-temperature steam consumption, helps minimize the risk of shell mold cracking, and reduces final wax residue, thereby improving dewaxing quality.

3.2 Comprehensive and rational structural composition. The equipment comprises core components such as the kettle body, structural base, quick-opening kettle door, wax collection tank, heating module, electronic control system, and exterior decorative panels. It is also equipped with a dedicated mold shell transport trolley and basket, greatly simplifying loading and unloading operations and improving production flow.

3.3The system supports freely adjustable operating pressure within the rated range and integrates multiple safety protection features: automatic water shortage detection—when the water level falls below the safety limit, heating is automatically cut off to prevent dry boiling; automatic overtemperature alarm and heating stop; and a safety valve, inlet and exhaust valves, wax drain valve, drain valve, check valve, pipeline filter, and pressure and temperature instruments are also included, forming a complete safety and control system.

Supply Ability & Additional Information

Packaging: WOODEN BOX

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 1200PCS/YEAR

Certificate: ISO 9001:2015

Port: QINGDAO

Payment Type: L/C,T/T

Incoterm: FOB,CIF,CFR,EXW
