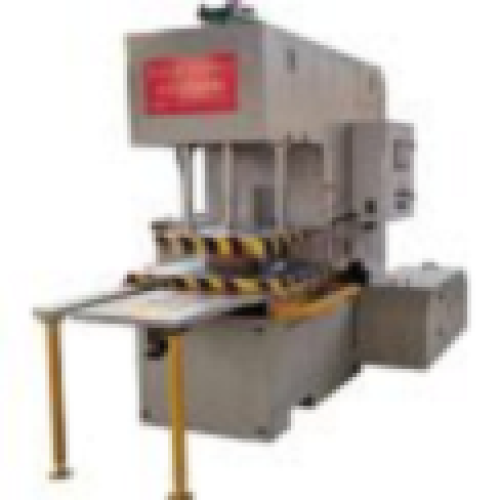

50-ton C-type wax injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DMZ-50CB-Y

$45000- /Piece/Pieces

45000USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DMZ-50CB-Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-DMZ-50CB-Y
Clamping force (max)	T	50
Mold use space(L×W×H)	mm	1000×1000×700
Up and down the mold trip	mm	600
Minimum height of the mold	mm	100
hydraulic oil tank	L	175
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

C-Type Single-Station 50T Wax Injection Machine: An Efficient Tool for Precision Casting

In the field of precision casting, the C-Type single-station 50T wax injection machine, with its superior performance and high-precision machining capabilities, has become an ideal choice for many foundries seeking efficient production. It not only meets the demands of manufacturing complex wax patterns, but also ensures a stable and efficient production process, providing strong support for the development of the precision casting industry.

1. High-Performance Wax Injection System

The core of the C-Type single-station 50T wax injection machine is its high-performance wax injection system. Equipped with an advanced wax injection cylinder and nozzle, this system precisely controls the flow and formation of the wax liquid. The wax injection cylinder's capacity and pressure are carefully designed to ensure that, under 50 tons of pressure, the wax liquid quickly and evenly fills the mold cavity, resulting in high-quality wax patterns. The nozzle's exceptional precision allows it to accommodate a variety of complex mold shapes, ensuring the detail and precision of the wax pattern. For example, when manufacturing wax patterns for complex aircraft engine blades, the C-type, single-station, 50T wax injection molding machine precisely controls the flow of the wax, ensuring perfect shaping of thin-walled sections and complex cooling channels, meeting high-precision casting requirements.

2. Stable Heating and Cooling System

To ensure the stability and fluidity of the wax during processing, the C-type, single-station, 50T wax injection molding machine is equipped with an advanced heating and cooling system. The heating system utilizes efficient electric heating elements to quickly heat the wax to the ideal temperature range, typically between 60°C and 70°C. This temperature range ensures excellent fluidity and plasticity while preventing decomposition or deterioration of the wax due to excessive temperatures. The cooling system utilizes circulating water to quickly cool the wax injection molding chamber and mold to the appropriate temperature, shortening production cycles and improving efficiency.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
