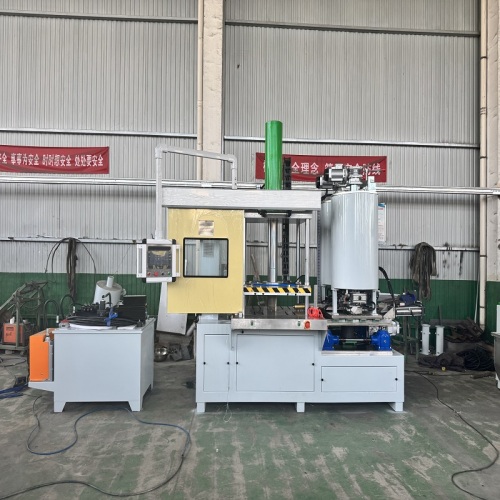

40T ceramic core wax Injection machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DTX-40Y

$61760- /Piece/Pieces

61760USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTX-40Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-DMZ-50CB-Y
Core cylinder volume	L	3
Temperature control range	℃	30-150℃
Core shooting pressure	MPa	10-15MPa

1. This machine is suitable for the investment casting industry. It is suitable for forming ceramic cores for various complex, high-quality, and high-precision medium and small castings.

2. Rated pressure: 10-15 MPa

3. Temperature control range: 30-150°C

4. Core shooting pressure: 2-4 MPa

5. Core shooting time: 0-99 seconds

6. Core cylinder capacity: 3L

7. Power supply: 380V AC

8. Equipped with dual mixing drums, these drums can be used for simultaneous preparation and operation, significantly improving work efficiency.

9. Fill the hydraulic oil tank with 46# hydraulic oil.

10. Fill the hot oil tank with heat transfer oil.

11. Independent hydraulic station: The hydraulic station measures 1.1 meters long, 0.8 meters wide, and 0.7 meters high. The hydraulic gauges are located in a unified location and are labeled.

12. Mold core pullers: Four mold core pullers are provided and can be closed when not in use. 13. Four-column lubrication: Oil injection holes are provided on all four columns for automatic lubrication.

14. Mold temperature monitoring: A separate mold temperature probe is designed; the real-time mold temperature must be displayed on the screen.

15. Hot/cold water switching: The hot/cold water switching can be automatically controlled based on the mold temperature, or manually.

16. Parameter modification permissions. 17. Safety light barrier.

18. Safety gate activation: Closes when the main cylinder descends and opens when it returns.

19. Air-cooled oil tank. 20. Tabletop: 800*800

21. Opening height: 850cm

22. Servo hydraulics: 7.5kW motor, 50L plunger pump.

23. Start the circulating heating oil pump and hydraulic oil pump and confirm forward rotation.

24. The servo hydraulic motor is IMAX; the hydraulic valve is from Taiwan Yuken; and the proximity switch series components are from Japan Omron. 25. Using PLC Delta control system, all parameter settings are completed on the screen, the human-machine interface is simple and elegant, and the operation is simple and convenient;

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: Qingdao Port

Payment Type: T/T

Incoterm: FOB,CIF,EXW
