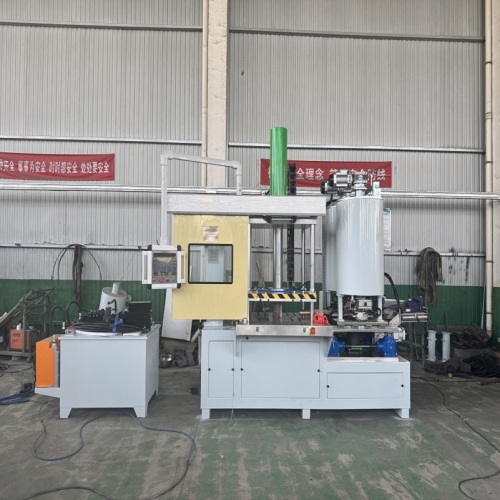

Single-station ceramic core machine

Payment Type:	T/T
Incoterm:	CIF,EXW,FOB
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao Port
Model:	YN-DTX-40Y

$61760- /Piece/Pieces

61760USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTX-40Y

Brand: Enon

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Explain	Unit	YN-DTX-40Y
Core cylinder volume	L	3
Temperature control range	℃	30-150℃
Core shooting pressure	MPa	10-15MPa
Workbench size	mm	*800800**

1. Scope of Application

This equipment is designed specifically for the investment casting industry and is suitable for forming ceramic cores for various complex, high-precision, high-quality small and medium-sized castings.

II. Technical Parameters

Rated Pressure: 10-15 MPa

Temperature Control Range: 30-150°C

Core Shooting Pressure: 2-4 MPa

Core Shooting Time: 0-99 seconds

Core Shooting Cylinder Capacity: 3L

Power Supply: 380V AC

III. Workbench and Space

Workbench Dimensions: 800 mm × 800 mm

Mold Opening Height: 850 mm

IV. Hydraulic System

Servo Hydraulics: 7.5 kW motor, 50 L plunger pump

Hydraulic Oil Tank: Requires 46# hydraulic oil

Hot Oil Tank: Requires thermal oil

Hydraulic Station: Independent, 1.1 m (L) × 0.8 m (W) × 0.7 m (H) hydraulic pressure gauges are centrally located and clearly labeled.

Four-Column Lubrication: All four columns are equipped with oil filling ports for automatic lubrication.

Hydraulic Components: Servo hydraulic motor uses IMAX Brand: Hydraulic valves are from Taiwan's Yuken, and proximity switches and other components are from Japan's Omron.

5. Mold and Molding

Mold Temperature Monitoring: Equipped with an independent mold temperature probe, real-time mold temperature is displayed on the screen.

Hot and Cold Water Switching: Automatically controls hot and cold water switching based on mold temperature, and manual operation is also possible.

6. Operation and Control

Electronic Control System: Utilizes a Delta PLC control system. All parameter settings are complete on the screen, with a simple and elegant human-machine interface for easy operation.

Parameter Modification Permission: Parameter modification permission can be set.

Safety Devices:

Safety Light Barrier: Equipped with a safety light barrier to ensure safe operation.

Safety Door: Interlocked with the main cylinder, closes when the main cylinder descends and opens when it returns.

7. Other Features:

Dual Mixing Tanks: Equipped with dual mixing tanks, simultaneous preparation and operation are possible, significantly improving work efficiency.

Air-Cooled Oil Tank: Utilizes an air-cooled oil tank design.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015
