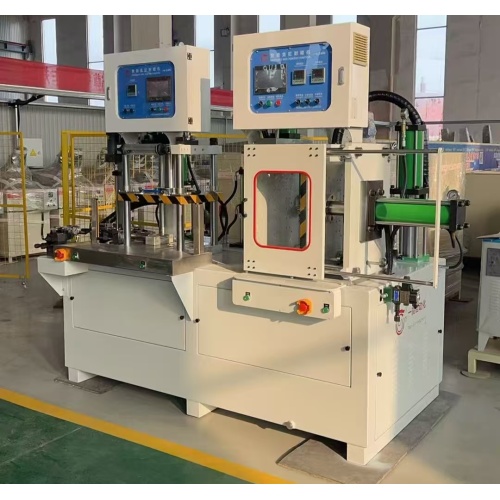

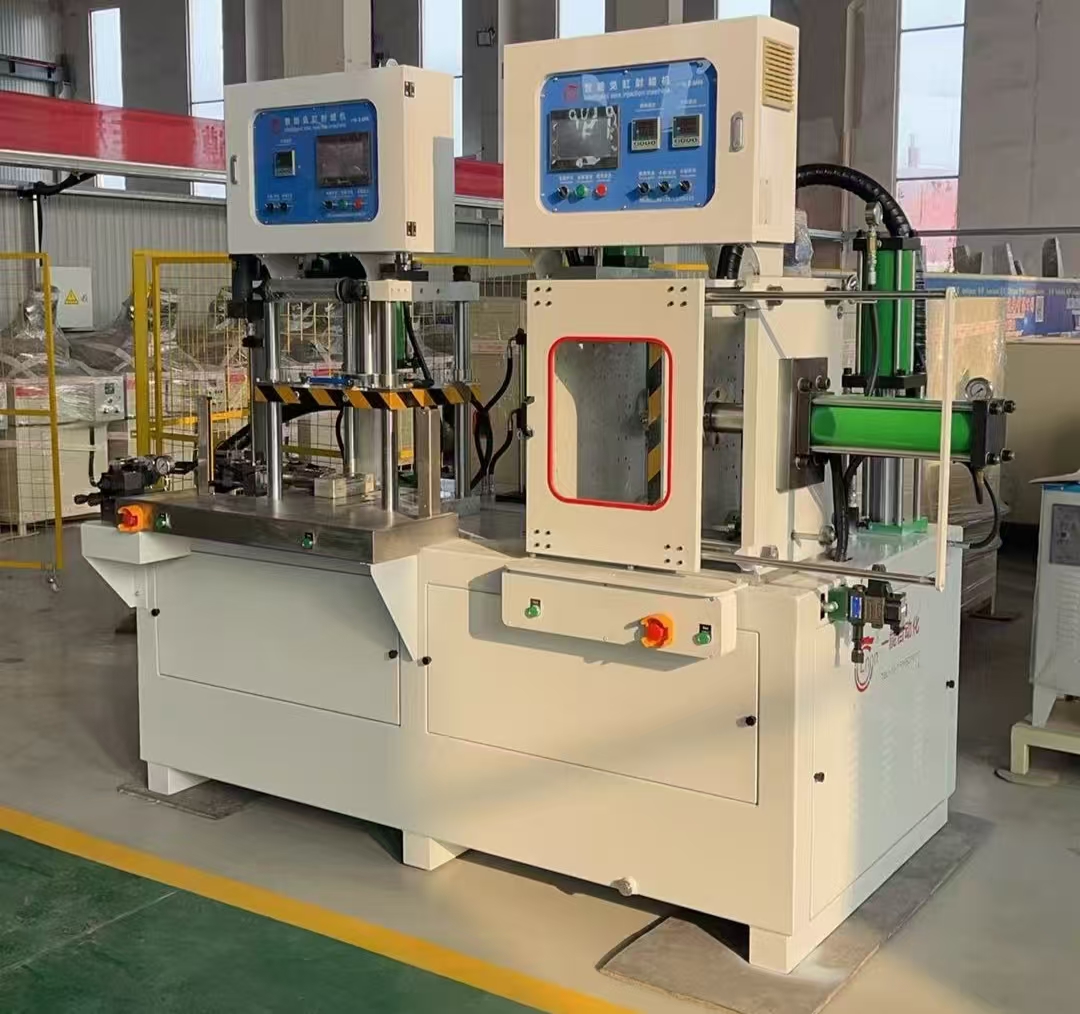

Investment casting equipment wax injection machine

Investment casting equipment wax injection machine

Min. Order:	1 Piece/Pieces
Transportation:	Land,Ocean
Port:	青岛
option:	YN-SMZ-10LB-Y

$21760- /Piece/Pieces

21760USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-SMZ-10LB-Y

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Explain	Unit	YN-SMZ-10LB-Y
Clamping force (max)	T	10
Mold use space(L×W×H)	mm	460×430×500
Up and down the mold trip	mm	400
Minimum height of the mold	mm	100
hydraulic oil tank	L	150
PLC+Touch screen	YES/NO	YES
The nozzle is electrically powered up and down	YES/NO	YES
Mold use form		Can be up and down fixed automatic mode, hand push single mode or double mode
Paraffin pressure form		Single and multiple segments can be selected
Maximum wax injection (wax cylinder)	L	3.3
Maximum injection pressure	MPa	0~10 (Hydraulic variable pressure control )

2.Description

1. The three-layer wax tube cooler utilizes thermal oil for heating and cooling, ensuring reliable wax temperature control. Temperature tolerance is controlled within ±0.5°C, and shrinkage is controlled within 0.5%.

2. A wax-free cylinder is used to shorten the precision casting production process, eliminating the need for the wax mold to rest in an insulated box for 24 hours.

3. The nozzle is adjustable, allowing for vertical, horizontal, and reciprocating movement of the mold.

4. Independent control of wax flow pressure and flow allows for secondary pressurization, effectively preventing shrinkage and improving wax mold quality.

5. The machine can automatically and timely control temperature, pressure, and flow according to customer requirements.

6. Imported hydraulic and electrical components ensure stable and reliable performance and a high cost-effectiveness.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Land,Ocean

Supply Ability: 120piece/Year

Certificate: ISO 9001:2015

Port: 青岛
