Efficient Investment Casting Electric Furnace Solution

Efficient Investment Casting Electric Furnace Solution

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-XPL-1.4*1.3

$17400- /Piece/Pieces

17400USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-XPL-1.4*1.3

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant, Machinery Repair Shops

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

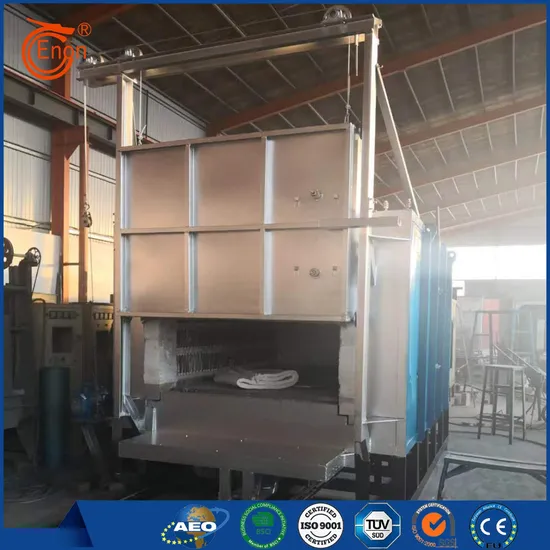

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages

2.1 It has a large loading capacity and can efficiently handle large workpieces, with high heat treatment efficiency and low operating costs.

2.2 The furnace lining adopts an integral fiber structure, which significantly improves its insulation performance compared to the traditional brick structure.

2.3 Small and medium-sized furnace bodies do not require foundation installation and can be integrated with a track system, suitable for layout and operation on flat ground.

2.4 Large electric furnaces use a zone heating method to improve the uniformity of temperature distribution. The heating elements are respectively arranged in the furnace door, rear wall, and channel area. At the same time, the furnace body is equipped with multiple automatic temperature control cabinets, which precisely regulate the temperature of each heating area.

2.5 The operation of the furnace door and the turntable are fully automated. Each electrical control box is equipped with various instruments and automatic monitoring devices, which can provide real-time operational data.

Supply Ability & Additional Information

Packaging: wooden box package

Transportation: Ocean,Land

Supply Ability: 500piece/Year

Certificate: wooden box package

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,EXW
