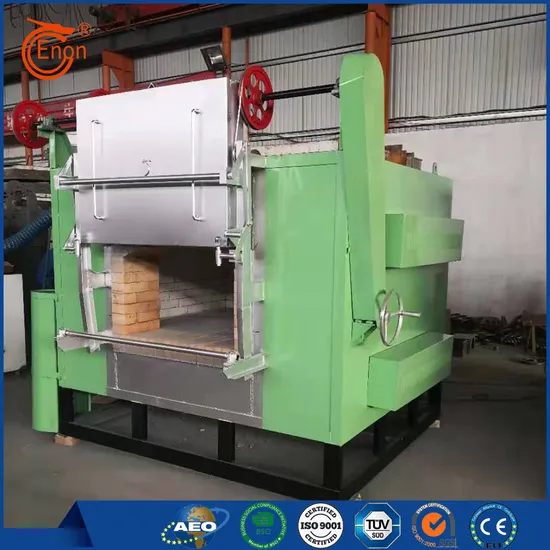

Energy saving High Standard Electric Box Roasting Furnace

Energy saving High Standard Electric Box Roasting Furnace

$17400- /Piece/Pieces

Payment Type:	T/T
Incoterm:	FOB,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao

Contact Now

Product Description

Product Attributes

Brand: Enon

Certification: ISO 9001:2015

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	woodenbox
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

(Special for copper handicrafts) Trolley Type Electric Roasting Furnace1



Product Description

1.Technical parameter

Product name	The high standard electric box roasting furnace
Model	unit	YN-XPL-1.4*1.3
Active furnace space	mm	(14001300700)
Throat size	mm	(580*580)
Rated working temperature	ºC	≤1200
Installed power	KW	150-180
The use of voltage		380V
Installation dimensions	mm	375023002600
Weight of equipment	T	6.0

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product advantages
1. Clean and Environmentally Friendly:

The operation process produces zero emissions, including no combustion exhaust, smoke, or sulfides. This is environmentally friendly and fully complies with environmental requirements.

2. Easy and Automated Operation:

Equipped with intelligent programmable temperature control, the equipment automatically completes the entire roasting process simply by presetting the process curve. This significantly reduces the operator's experience and skills, and reduces human error.

3. Precise Temperature Control:

This is one of the core features of electric furnaces. High temperature control accuracy (up to ±1°C to ±5°C) ensures uniform temperature within the furnace, ensuring consistent heating of all mold shells and consistent casting quality.

4. Compact Structure and Small Footprint:

Without the need for complex burners, piping, and exhaust systems, the equipment structure is relatively simple, resulting in a smaller overall footprint.

5. Relatively Simple Maintenance:

There are no issues with burner clogging or nozzle wear. Routine maintenance primarily involves checking the condition of the resistance heating element and refractory materials.

6. High Safety:

There are no open flames, fuel leaks, or explosion risks. These are typically equipped with multiple safety protection systems (such as over-temperature alarms, circuit breakers, and mechanical interlocks).
