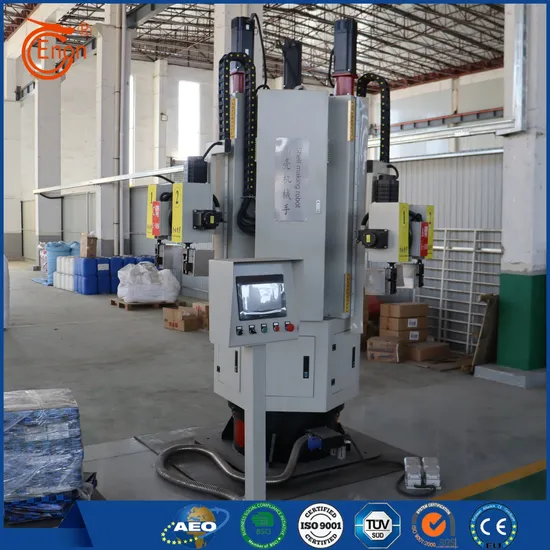

Industrial-Grade Manipulator for Automated Shell Casting

Industrial-Grade Manipulator for Automated Shell Casting

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-4/8
option:	YN-JXS-4/8

$44120- /Piece/Pieces

44120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-4/8

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Technical indicators	Technical parameter
Outline dimension of single string shell mold	$450mmXH500mm
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

2,Benefit description

Meet our high-precision shell-making robot, a best-selling industrial solution designed to redefine the efficiency of investment casting workflows. As a purpose-built robotic arm designed specifically for the unique demands of the casting process, it stands out with its combination of precision and smooth production efficiency.

At its core, this robot integrates advanced motion control technology and highly sensitive sensors, enabling it to perform complex casting tasks with micron-level accuracy. Whether handling mold preparation, material deposition, or shell formation, every movement is calibrated to eliminate inconsistencies, ensuring that each shell meets stringent quality standards—critical in an industry where even the smallest imperfections can impact performance.

Unique to this robotic arm is its adaptive design, enabling it to operate efficiently in dynamic production environments. Its advanced control system continuously adjusts to variables such as material viscosity and temperature, maintaining stable operation and reducing manual intervention. This not only streamlines production cycles but also minimizes waste, making it a cost-effective choice for high-volume production.

This robot is ideal for industries demanding exceptional quality from precision castings, including automotive component production (consistent housing quality improves engine performance), aerospace component manufacturing (critical for withstanding extreme conditions), and medical device production (where precision directly impacts patient safety).

Users across these industries have witnessed its transformative impact: one automotive manufacturer reported a 30% increase in production efficiency after integration, while an aerospace supplier praised its ability to mass-produce "near-perfect" housings.

In essence, this best-selling housing robot is more than just a tool; it's a reliable partner in precision casting, combining cutting-edge technology with real-world performance to elevate your manufacturing capabilities.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
