Model No.: YN-JXS-4/8
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant, Other
| Selling Units: | Piece/Pieces |
| Package Type: | Wooden box packaging |

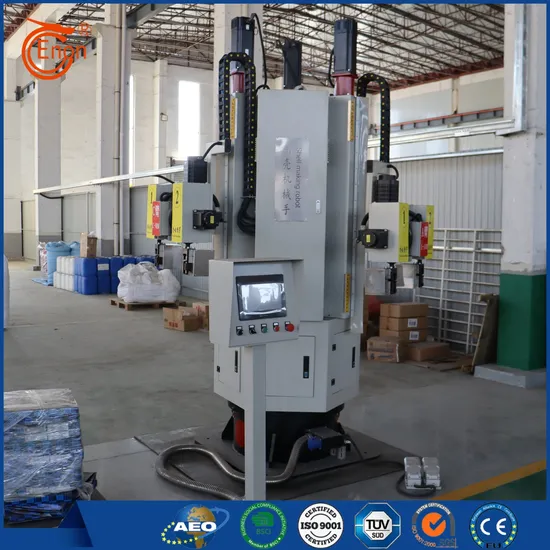

| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
1,technical parameter | Technical indicators | Technical parameter |
| Outline dimension of single string shell mold | $450mmXH500mm |
| Center distance between two string shell moulds | 500mm |
| Weight of single string shell mold | ≤30kg |
| Equipment structure | Three arms and six hands |
| work efficiency | ≥1 string/20-25s |
| Rotation angle of main column | 0-360°(Continuous rotation) |
| Rotation index of main column | 120°/3 stations |
| Rotation speed of main column | 90 °/0-10s (adjustable) |
| Movement angle range of clamping module | -10 ° to 135 ° (centered on the vertical line of the ground plane) |
| Up and down (z-axis) stroke of station | 0-700mm (adjustable) |
| Lifting rotation speed | 180 °/0-10 seconds (adjustable) |
| Swing rotation speed | 180 °/0-10 seconds (adjustable) |
| Self rotation angle of workpiece | 360 ° (continuous rotation) |
| Pick up mode | Manual hanging |
| Fixture mode | Pneumatic automatic locking |
| Quickly replace tooling | Quickly replace adaptive clamps according to different hooks |
Packaging: Wooden box packaging
Productivity: 120piece/year
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 120piece/year
Certificate: ISO 9001:2015
Port: Qingdao
Payment Type: T/T
Incoterm: FOB,CIF,EXW
