Model No.: YN-JXS-3/6
Brand: Enon
Selling Units: | Piece/Pieces |
Package Type: | Wooden box packaging |

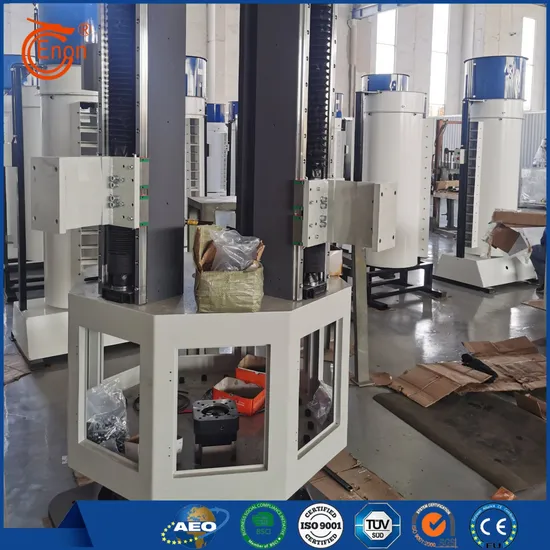

Picture Example: |
![]() |
The file is encrypted. Please fill in the following information to continue accessing it
Technical indicators | Technical parameter |
Outline dimension of single string shell mold | $450mmXH500mm |
Center distance between two string shell moulds | 500mm |
Weight of single string shell mold | ≤30kg |
Equipment structure | Three arms and six hands |
work efficiency | ≥1 string/20-25s |
Rotation angle of main column | 0-360°(Continuous rotation) |
Rotation index of main column | 120°/3 stations |
Rotation speed of main column | 90 °/0-10s (adjustable) |
Movement angle range of clamping module | -10 ° to 135 ° (centered on the vertical line of the ground plane) |
Up and down (z-axis) stroke of station | 0-700mm (adjustable) |
Lifting rotation speed | 180 °/0-10 seconds (adjustable) |
Swing rotation speed | 180 °/0-10 seconds (adjustable) |
Self rotation angle of workpiece | 360 ° (continuous rotation) |
Self rotation speed of workpiece | 5-40 rpm (adjustable) |
Pick up mode | Manual hanging |
Fixture mode | Pneumatic automatic locking |
Quickly replace tooling | Quickly replace adaptive clamps according to different hooks |
At its core lies a focus on efficiency that goes beyond mere speed. The arm leverages a sophisticated blend of servo motors and adaptive algorithms, enabling it to adjust task pacing in real time—accelerating through repetitive steps while slowing to ensure precision during intricate operations. This dynamic approach eliminates unnecessary downtime, making it capable of handling up to 30% more tasks per hour compared to conventional robotic arms, all without sacrificing quality.Whether tightening micro-screws in electronics assembly or aligning heavy automotive partsWhat truly sets this robotic arm apart is its seamless integration of advanced technologies. It syncs with industrial IoT systems to share real-time data on task completion, energy usage, and maintenance needs, allowing managers to optimize production schedules proactively. Additionally, its open-architecture software supports custom programming, enabling businesses to tailor its functions to unique operational needs—from automated material sorting to collaborative assembly with human workers.
Built to thrive in tough environments, the arm features a rugged chassis made from heat-resistant alloy and sealed joints that repel dust, oil, and moisture. This durability ensures reliable performance even in high-temperature foundries or humid warehouse settings, with a projected lifespan of over 100,000 operational hours before major servicing is needed.
This robotic arm shines across a range of scenarios: in automotive plants, it assembles door panels with consistent pressure to avoid seal damage; in electronics factories, it places circuit components with pinpoint accuracy; in logistics hubs, it sorts packages by weight and destination at rapid speeds. By taking over these tasks, it reduces manual labor demands, cuts operational costs by up to 25%, and frees up workers to focus on higher-value roles like quality control and process optimization.
Packaging: Wooden box packaging
Productivity: 120piece/year
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 120piece/year
Certificate: ISO 9001:2015
Port: Q,i,n
Payment Type: T/T
Incoterm: FOB,CIF,EXW
