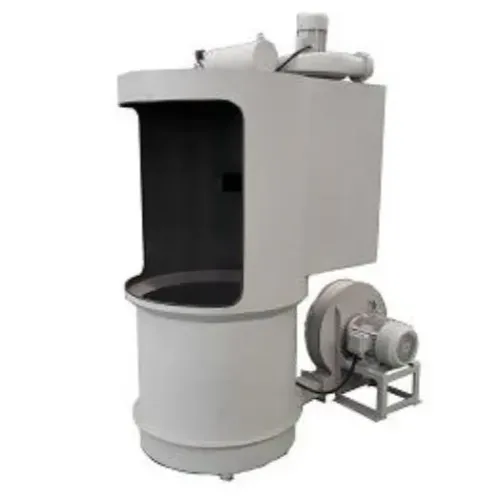

Investment casting floating sand machine with dust removal

Investment casting floating sand machine with dust removal

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:
option:	YN-FSJ-800

$3090- /Piece/Pieces

3090USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-FSJ-800

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc, Motor, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

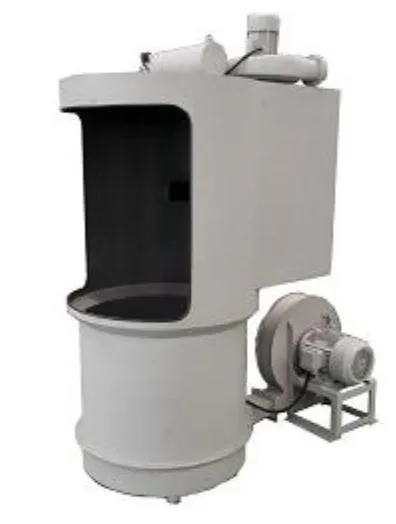

1. Technical parameters

Specifications and models	YN-FSJ-800
Floating sand bucket diameter	Φ800mm
Floating sand bucket depth	620mm
Blast pressure	≤3.8KPa
Blast air volume	≤3500M3/h
Blowing power	4/7.5kw

2. Product Description

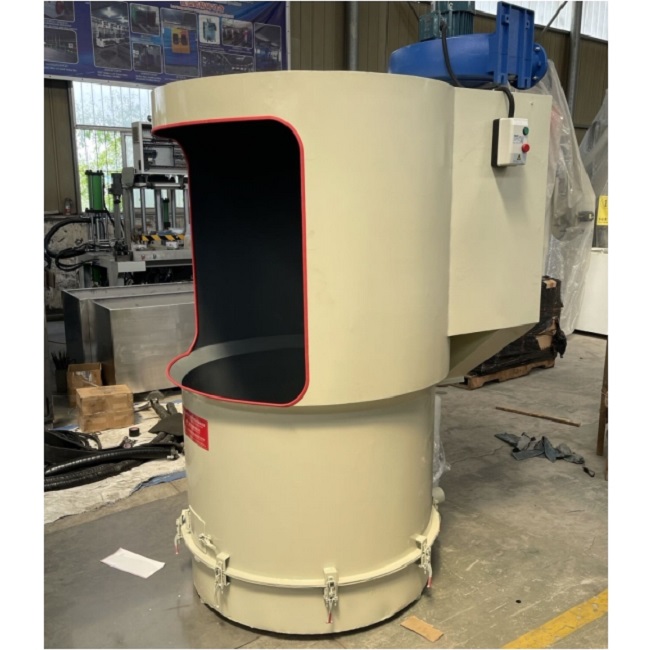

1. The main machine adopts an air distribution structure with high wind pressure and high wind resistance, and surrounds the air flow diffusion

structure to make the sand particles suspended evenly and fluffy, making it difficult to splash.

2. The suspension height of the sand grains is adjusted indirectly by adjusting the air suction volume through the fan inlet, making the air volume

control sensitive and making the fan less likely to be overloaded or work at a lower air pressure. This allows the sand floating machine to save

energy while extending its life and reducing noise.
3. There is an air-induced dust removal port on the top of the upper ring of the floating sand bucket, which can be directly connected to the dust

collector without affecting the operation.

4. This machine adopts an integrated structure, and the 4KW fan on the surface is controlled by a foot switch to start and stop, which is more

energy-saving.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 10 Set/Sets Per Month

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
