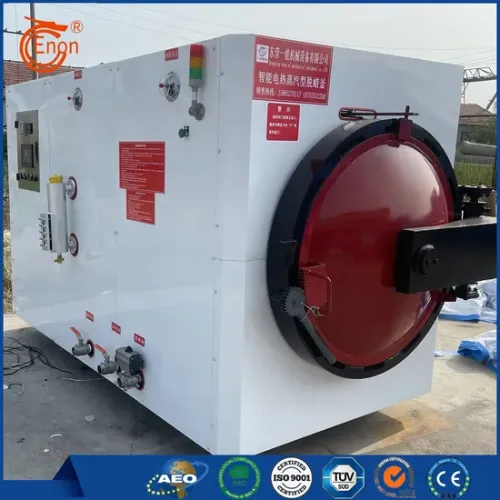

Top Quality Dewaxing Oven Machine

Payment Type:	L/C,T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	QINGDAO
Model:	YN-DTF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	WOODEN BOX
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Product Features and Advantages

1. Siemens PLC Control System: Built on a Siemens PLC, the control system boasts powerful control capabilities and stability. This system comprehensively monitors and precisely controls the equipment's operation, achieving automated operation. Operators simply configure parameters and issue operating instructions on the control panel, and the equipment automatically completes the dewaxing process according to pre-set procedures. Operation is simple and fast, reducing the need for specialized skills.

2. Remote Monitoring and Diagnosis: Leveraging advanced network communication technology, the control system supports remote monitoring. Enterprise managers or technicians can remotely view equipment operating status, real-time parameters, and other information anytime, anywhere via mobile phones, computers, and other devices. The system also includes equipment diagnostics, providing timely diagnosis and early warning of equipment failures and providing solutions. This facilitates remote maintenance and troubleshooting by technicians, significantly reducing maintenance time and improving equipment availability.

3. Data Logging and Analysis: The equipment is equipped with a data curve parameter recording function, enabling real-time monitoring and data logging of the entire dewaxing process. This data can be downloaded and analyzed. Through in-depth analysis of production data, companies can understand equipment operating conditions, production efficiency, product quality, and other information, providing strong data support for optimizing production processes and improving product quality. For example, by analyzing the changing trends of temperature and pressure data, potential problems in equipment operation can be promptly identified and targeted adjustments and optimizations can be implemented.

2.technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 153kw
dimensions	4250×2050×2150
weight	4.2T

Supply Ability & Additional Information

Packaging: WOODEN BOX

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120PCS/YEAR

Certificate: ISO 9001:2015

Port: QINGDAO

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW
