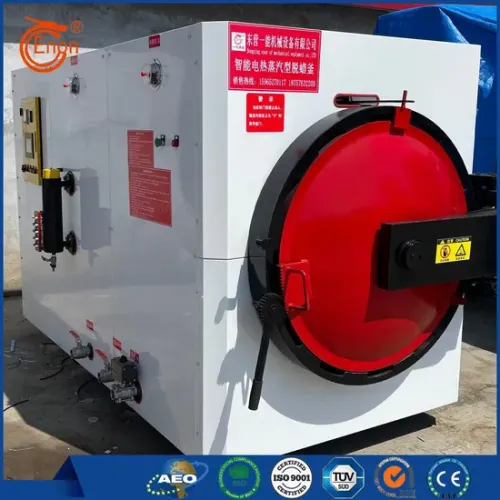

Investment Casting Lost Wax Dewaxing Machine

Investment Casting Lost Wax Dewaxing Machine

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	QINGDAO
Model:	YN-DTF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	WOODEN BOX
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical Parameters

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
Design pressure	0.95MPa
working temperature	185ºC
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 123kw
dimensions	4250×2050×2150
weight	2.75T

2. Main Features and Advantages

1. Stable Temperature and Pressure Control: Equipped with an advanced temperature and pressure control system, the reactor's internal surface temperature and pressure are precisely maintained. The reactor's internal surface temperature remains consistently above 150°C, ensuring the wax is fully melted and flows smoothly out of the mold. This reduces the amount of distilled water in the reactor and the wax, lowering the wax's moisture content and effectively preventing casting defects caused by residual moisture. Precise pressure control ensures uniform stress on the mold during the dewaxing process, significantly reducing the likelihood of cracks or fissures, laying a solid foundation for producing high-quality castings.

2. Optimized Steam Filling and Pressure Release: A symmetrical steam inlet design optimizes the steam filling process, ensuring more even steam distribution within the reactor and sufficient, uniform heating of each mold. Furthermore, the steam outlet, equipped with an automatic control valve, optimizes pressure release, further reducing the risk of mold cracking. Field testing has shown that using this equipment has reduced mold cracking by over 50%, significantly improving casting yields.

3. Stainless Steel Diversion and Filtration Device: An internal stainless steel diversion and filtration device effectively guides the wax liquid after it exits the mold shell. Through multiple layers of filtration, impurities are removed from the wax liquid, improving its purity. This high-purity wax liquid ensures the quality of the wax pattern during subsequent recycling, indirectly improving the overall quality of the casting.

Supply Ability & Additional Information

Packaging: WOODEN BOX

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120PCS/YEAR

Certificate: ISO 9001:2015

Port: QINGDAO

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF
