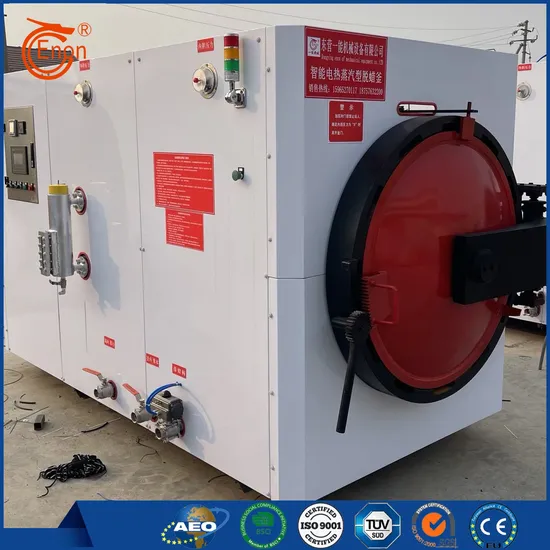

Model No.: YN-DTF-1200Z
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant
| Selling Units: | Piece/Pieces |
| Package Type: | WOODEN BOX |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Model | YN-DTF-1200Z | ||||
| working space | φ1200×1500mm | ||||
| working pressure | 0.85MPa | ||||
| working temperature | 185ºC | ||||
| Design pressure | 0.95MPa | ||||
| Voltage regulating range | 0~0.85MPa | ||||
| Boost rate | 0.6MPa/5s | ||||
| power | 380V/50Hz 153kw | ||||
| dimensions | 4250×2050×2150 | ||||
| weight | 4.2T | ||||
The system is equipped with redundant safety monitoring for both pressure and temperature, automatically interrupting power supply when predefined operational limits are breached. A dual-color electronic liquid level controller precisely regulates water levels—halting both water intake and heating under high-level conditions and deactivating heating elements during low-level situations to prevent dry operation and component failure. Multimodal alert systems, including visual and audible signals, deliver prompt notification of any operational deviations.
4. Efficiency and Output Quality
Dewaxing operations are completed rapidly, generally within a 10 to 15-minute window, with adjustable timing tailored to the size and intricacy of castings. This method facilitates complete wax extraction while preserving mold structure. The reclaimed wax displays minimal moisture absorption and is readily purified via stainless steel filtration, producing high-quality material ideal for immediate recycling.
Packaging: WOODEN BOX
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 120PCS/YEAR
Certificate: ISO 9001:2015
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
