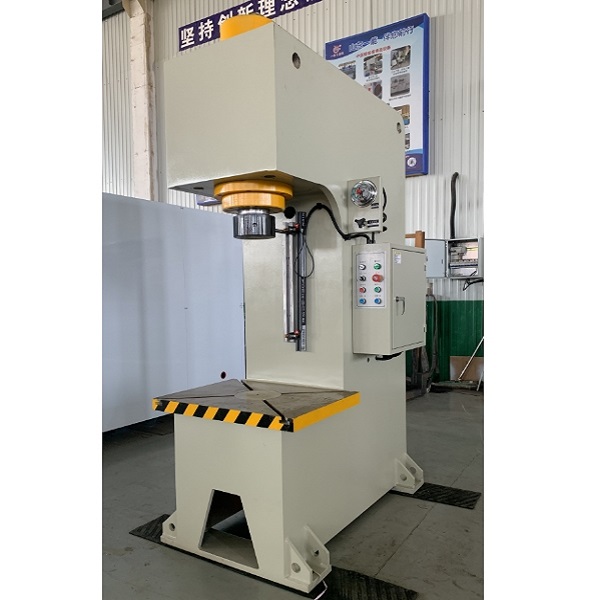

Investment casting open shaping machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-ZXJ-100T

$8090- /Piece/Pieces

8090USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-ZXJ-100T

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Equipment pressure	100T
System pressure	22MPa
Cylinder stroke	450mm
Maximum mold opening height	750mm
Minimum clamping height	300mm
Bottom work table	800*800mm
Press plate	800*800mm
Equipment power	5.5kW
Overall dimensions	14009502560mm

1.This equipment is specifically designed, developed, and manufactured for the shaping and precision calibration of medium-to-large castings and forged hardware components in the investment casting and precision machining industries. It is particularly suitable for processing large valves, butterfly plates, pump bodies, and other high-value parts requiring high dimensional stability and structural integrity.

2. All key electrical and hydraulic components are imported from internationally renowned brands, ensuring reliability and long service life. The machine is equipped with a built-in safety light curtain that provides comprehensive collision prevention and misoperation protection, effectively safeguarding operator safety during high-pressure operations.

3. An independent external hydraulic system is integrated with a dual-circuit water-cooling device, which maintains consistent oil temperature and system stability during prolonged operation. This design not only enhances equipment durability but also simplifies maintenance and reduces downtime.

4. The robust C-shaped open-frame structure offers easy accessibility from three sides, facilitating efficient loading and unloading of workpieces while providing ample space for handling oversized components.

5. Multiple shaping pressure options are available—60T, 100T, and 150T—to accommodate a wide range of material thicknesses and deformation requirements, offering flexibility for various industrial applications.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
