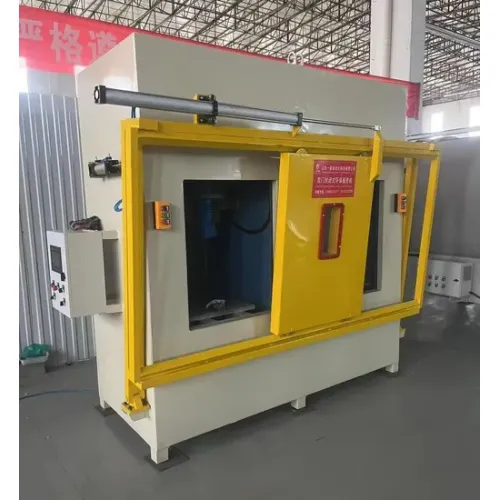

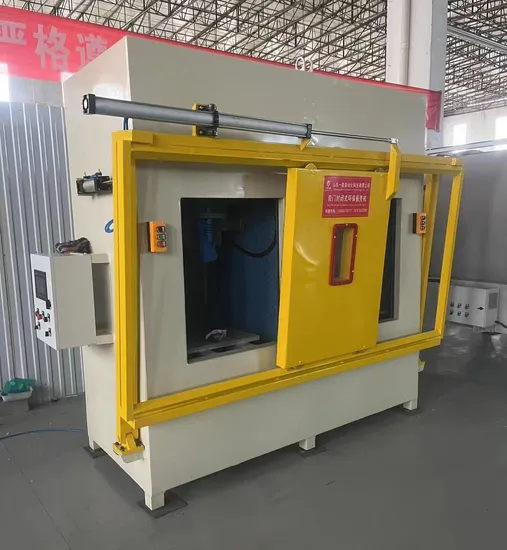

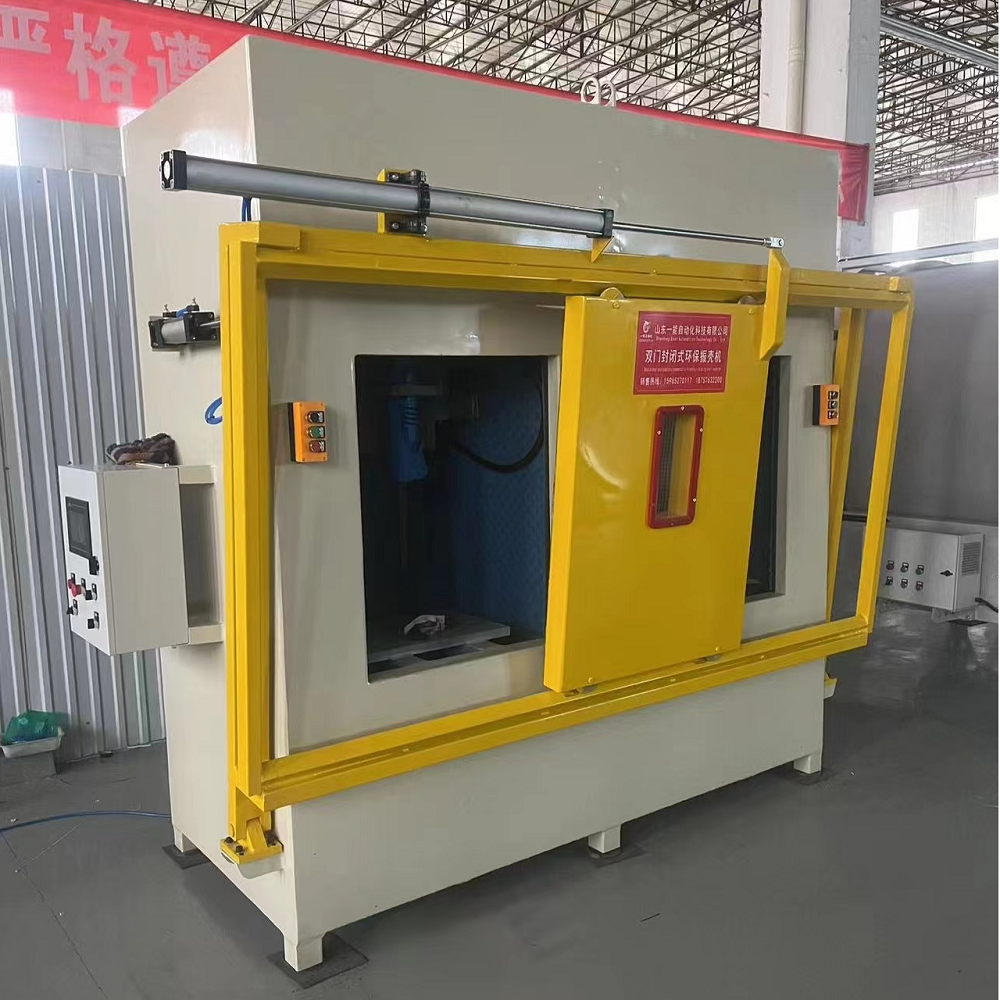

Double-door fully enclosed vibration shelling machine

Double-door fully enclosed vibration shelling machine

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	qingdao
Model:	YN-HZK-950

$7650- /Piece/Pieces

7650USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-HZK-950

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameters

Model	YN-HZK-950
Can be installed in the shell space	500X450mm
Maximum height of pickaxe:	600mm
Vibrating rod lifting heigh	300mm
Countertop size	500×630mm
Dimensions	(L)1200×(W)1100×(H)2600mm

2,Main structural features:

1. This machine uses CB-87 crusher to provide impact energy, and the impact operation is controlled by remote pneumatic and electronic control.
2. The chassis of this machine is installed on a vibration-isolating cement foundation to reduce ground-borne noise. At the same time, this machine adopts a cover-type sound insulation and sound-absorbing system to completely isolate the equipment from the outside world when vibrating the shell, blocking air-borne noise and making the ground Absorb vibration energy to ensure the operating noise of this machine is less than 120dB

3. The lower slag opening of this machine is sealed by a side push of a cylinder, and is equipped with a residual material conveying device.

4. The whole machine is welded with section steel and hot-rolled steel plates to ensure high strength and low vibration and noise.

5. The sound insulation materials are fire-proof and high-temperature resistant, and can absorb efficiently.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Ocean,Land

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
