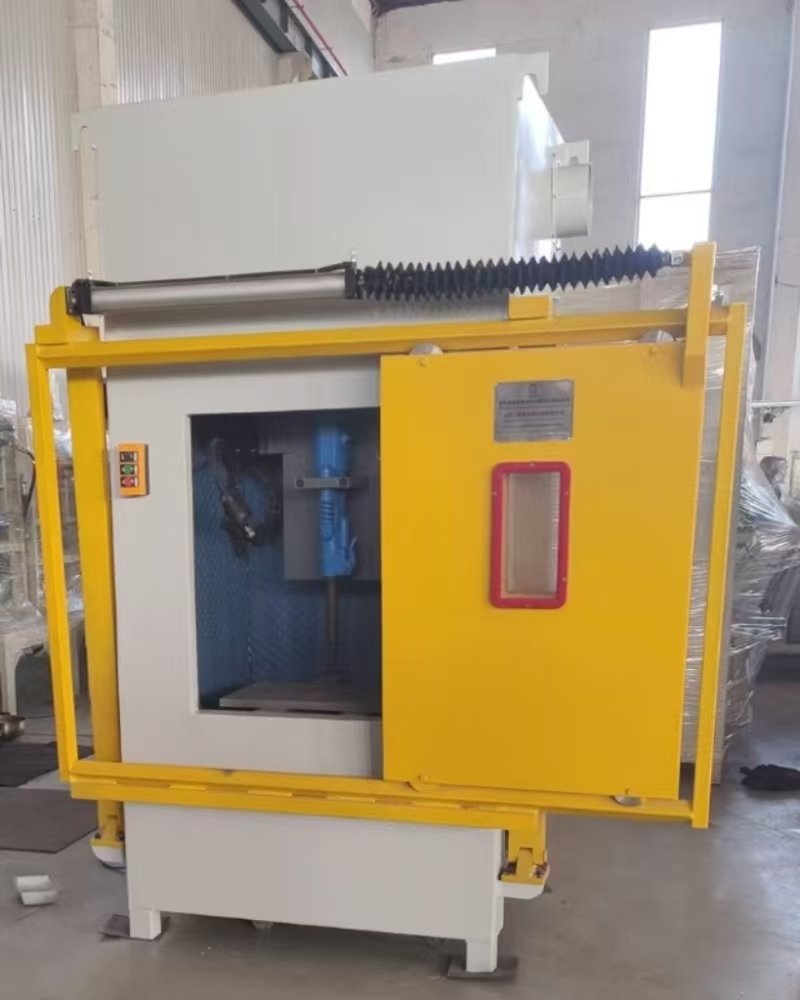

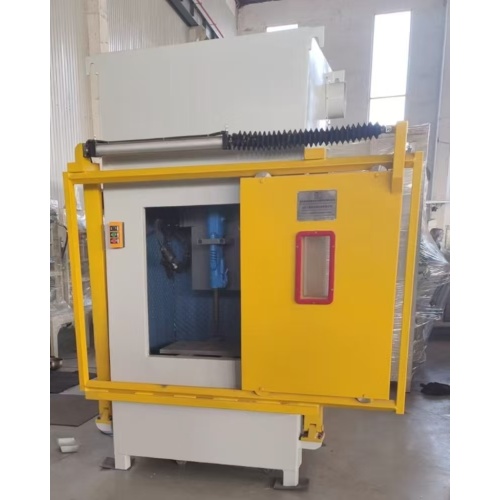

Single door noise reduction vibration shell machine

Single door noise reduction vibration shell machine

Payment Type:	T/T
Incoterm:	EXW,FOB
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-HZK-950

$7650- /Piece/Pieces

7650USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-HZK-950

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Machinery Repair Shops, Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	woodenbox
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1.Technical parameter

Product name	Single door noise reduction vibration shell machine
Model	unit	YN-HZK-950
Impact energy	J	≥120
Impact frequency	HZ	≥37
Air consumption	L/S	≤54
Operating air pressure	MPa	≥0.5
Operating noise level	dB	≤85
Mould shell space available	mm	600X650
Maximum pick height	mm	650

Note: The equipment specifications and models can be customized according to customer requirements.

2.Product Structure
1. The front of the soundproof enclosure features an automatic door-raising mechanism, which automatically raises the cylinder and has a locking device. After loading, a single button press instantly activates the programmable start/completion process: door closing, housing vibration, delay, vibration stop, delay, and door opening.

2. The height of the casting positioning mechanism is adjustable from 350 to 650 mm. If the height of the casting does not match the user's casting, the height of the support block can be adjusted.

3. The slag outlet of this machine is sealed with a pneumatic cylinder side push mechanism and is equipped with a scrap material conveyor.

4. The YN-HZK-950 worktable has a 0° angle, ensuring stable vibration.

5. The entire machine is welded from section steel and hot-rolled steel plates, ensuring high strength and low vibration and noise.

6. It operates pneumatically, making it safer and more convenient for outdoor use. It features automatic vibration start from the right side and a comprehensive air distribution system.
