Experts in casting equipment and automatic cutting machines

Experts in casting equipment and automatic cutting machines

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Land,Ocean
Port:	qingdao
Model:	YN-HQG-400/5.5

$8090- /Piece/Pieces

8090USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-HQG-400/5.5

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging

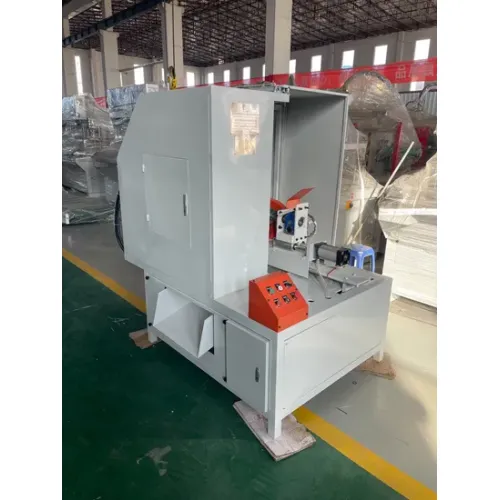

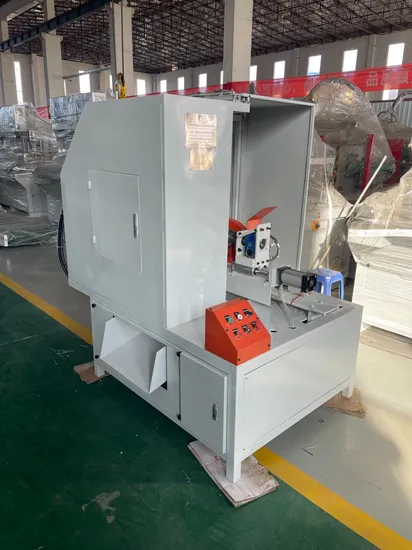

Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameters

Dimension					1600X920X1730mm
Frequency					50HZ
Working air pressure					0.4MPA
Grinding wheel cutting stroke					350mm (adjustable)
Cutting disc diamete					400mm
Maximum opening distance					460mm
Minimum opening distance					160mm
Workbench height					800kg
Speed					2800r/min

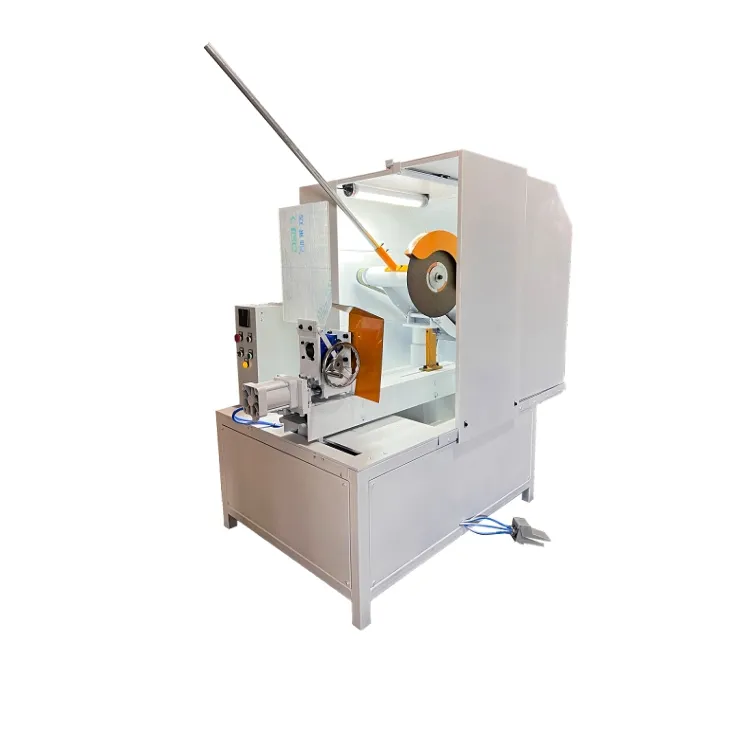

2,Application of new technology in semi-automatic positioning cutting machine

1. This equipment is specially used for cutting castings in precision casting enterprises. It has the characteristics of flexible operation, simplicity and safety.
2. The workpiece is clamped with pneumatic automatic centering, positioning and clamping; the left and right movement distance and the front and rear clamping distance are adjustable; the height of the cutting machine can be adjusted by turning over 90° and 180°; adding a workpiece clamping and tightening cylinder makes the clamp more flexible Stronger and safer.
3. The cutting blade can be automatically adjusted up and down according to the size of the workpiece.
4. Positioning cutting is safe and reliable, and operators can easily master it without special training.
5. During cutting operation, the front and rear distance can be fixed or moved.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Transportation: Land,Ocean

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
