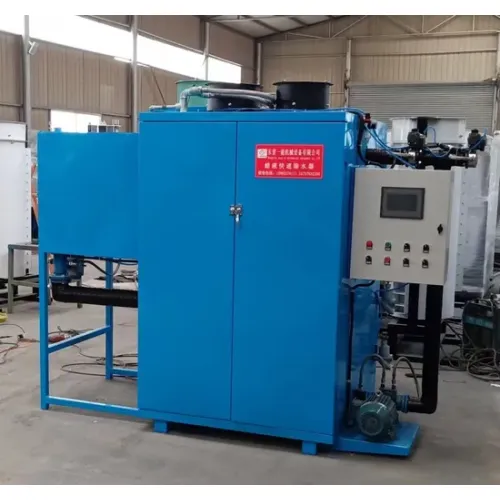

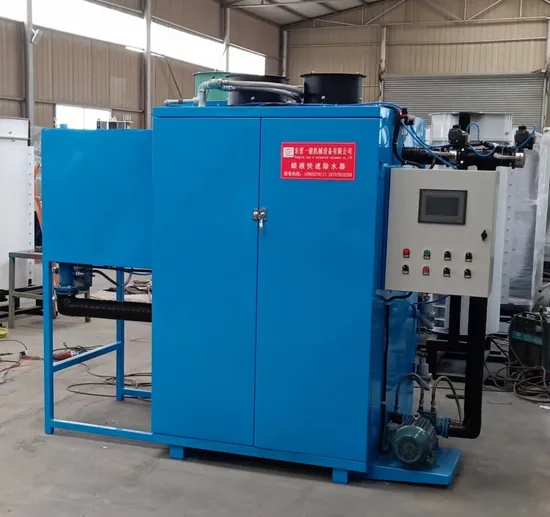

Fast Wax Water Separator for Investment Casting

Fast Wax Water Separator for Investment Casting

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Model:	YN-KCS-4.0S

$11030- /Piece/Pieces

11030USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-KCS-4.0S

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:

Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Model	YN-KCS-4.0S
Power	380V
Heating area	4m2
Rated evaporation pressure	0.8Mpa
Size	220012002500mm
Weight	300kg

Introduction:

This equipment is suitable for rapid wax-water separation during wax processing.

Application: Used for wax-water separation during wax processing.

Features:

1. Large film-forming area ensures more complete and rapid wax-water separation.

2. Optimum heating temperature facilitates wax-water separation, ensuring wax quality.

3. All parts in contact with the wax are made of stainless steel, preventing contamination of the wax.

4. Steam is provided by a steam generator, eliminating the need for other auxiliary equipment.

5. Utilizing a touch screen + PLC intelligent control system, all operations are performed by a set of high-efficiency pneumatic components, achieving automated and intelligent wax-water removal.

6. No dewatering tank is required. After the treated wax is allowed to rest in a settling tank, it can be used directly for wax injection. This eliminates the need for prolonged high-temperature boiling, ensuring excellent wax stability.

7. Double-layer insulation is used in the wax valves and piping to prevent cold wax from clogging the piping. An optimized wax filtration system reduces stagnant time.

Supply Ability & Additional Information

Supply Ability: 500piece/Year

Certificate: ISO 9001:2015

Payment Type: T/T

Incoterm: FOB,CIF,EXW
