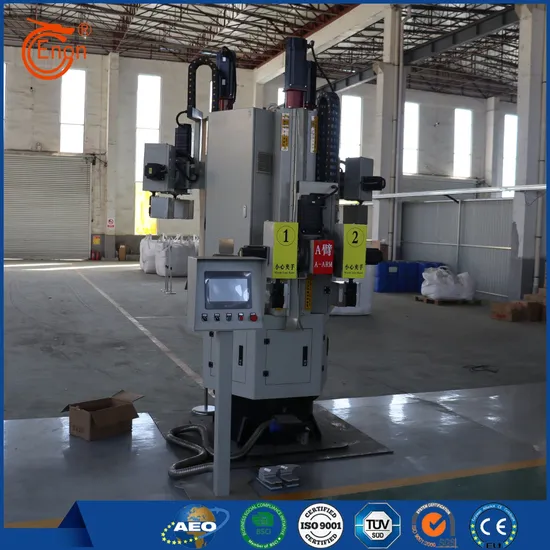

Intelligent Six-Arm Robotic Arm Shell Maker

Intelligent Six-Arm Robotic Arm Shell Maker

Name: Enon Robot Arm Intelligent Robotic Arm Six Arm Shell Making Manipulator Hot Sell1
Uploaded: 2025-06-23T08:10:05+08:00
Description: 1， Benefit description Summary: The intelligent six-arm robot is a popular product designed to

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-JXS-3/6
option:	YN-JXS-3/6

$38240- /Piece/Pieces

38240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-JXS-3/6

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	Wooden box packaging
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1， Benefit description

Summary: The intelligent six-arm robot is a popular product designed to streamline the housing manufacturing process.

Key Features: Equipped with six arms, this robot can be precisely programmed to perform complex movements, making it ideal for manufacturing tasks requiring high precision.

Detailed Description: The popular six-arm robot utilizes advanced technology to adapt to diverse production environments and tasks. Its intelligent design ensures smooth operation and increases productivity.

Application Scenario: This robot is ideal for manufacturing castings in industries such as automotive, electronics, and aerospace, where precision and efficiency are paramount.

User Reviews: Customers rave about the popular housing manufacturing robot's reliability, ease of use, and ability to improve workflow efficiency.

2，technical parameter

Technical indicators	Technical parameter
Outline dimension of single string shell mold	$450mmXH500mm
Center distance between two string shell moulds	500mm
Weight of single string shell mold	≤30kg
Equipment structure	Three arms and six hands
work efficiency	≥1 string/20-25s
Rotation angle of main column	0-360°(Continuous rotation)
Rotation index of main column	120°/3 stations
Rotation speed of main column	90 °/0-10s (adjustable)
Movement angle range of clamping module	-10 ° to 135 ° (centered on the vertical line of the ground plane)
Up and down (z-axis) stroke of station	0-700mm (adjustable)
Lifting rotation speed	180 °/0-10 seconds (adjustable)
Swing rotation speed	180 °/0-10 seconds (adjustable)
Self rotation angle of workpiece	360 ° (continuous rotation)
Self rotation speed of workpiece	5-40 rpm (adjustable)
Pick up mode	Manual hanging
Fixture mode	Pneumatic automatic locking
Quickly replace tooling	Quickly replace adaptive clamps according to different hooks

3.Slurry Dipping: The rotating base rotates, transferring the robotic arm to the slurry dipping station. At this point, the robotic arm's joints begin coordinated movement, immersing the formwork in the slurry in the desired position. Precisely controlling the arm's lifting speed and angle ensures an even coating of slurry on the formwork, while minimizing waste and uneven slurry coverage.

Slurry Drip: After slurry dipping, the rotating base rotates again, transferring the formwork to the slurry dripping station. At this station, the robotic arm controls the formwork by rotating and swinging it to allow excess slurry to drip off smoothly, ensuring a uniform slurry thickness across the formwork surface and minimizing contamination from dripping slurry.

Strong flexibility: The multi-jointed structure of the manipulator makes it highly flexible and adaptable to molds of different shapes, sizes, and weights, as well as different shell-making process requirements. Through simple parameter adjustments and program modifications, shell-making operations for different products can be achieved, showing strong versatility and adaptability.

Supply Ability & Additional Information

Packaging: Wooden box packaging

Productivity: 120piece/year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 120piece/year

Certificate: ISO 9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,CIF,EXW
