Lost wax casting equipment automatic shell drying line

Lost wax casting equipment automatic shell drying line

Payment Type:	T/T
Incoterm:	CIF,EXW,FOB
Min. Order:	1 Meter
Transportation:	Ocean,Land
Port:	Qingdao
option:	YN-GZX-600Z

$180- /Meter

180USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-GZX-600Z

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc, Gear, Pump

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:

Meter

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Product Description

1,Technical parameter

Model	YN-GZX-600Z
Suspension spacing	600-800mm
Chain weight	6.3kg/m
Single hook lifting weight	≤100kg
Operating temperature	≤400ºC

2,Main structural features:

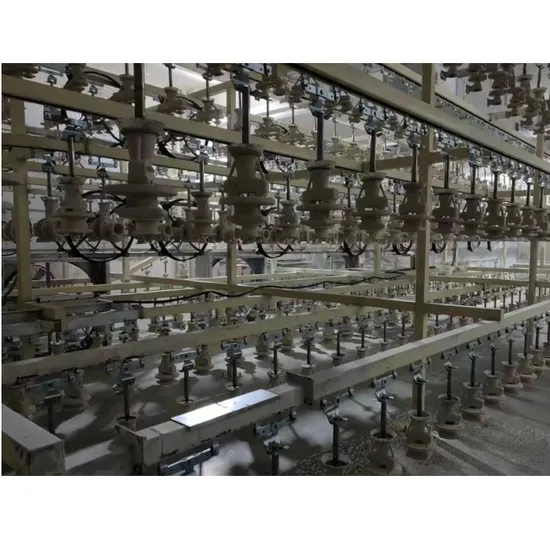

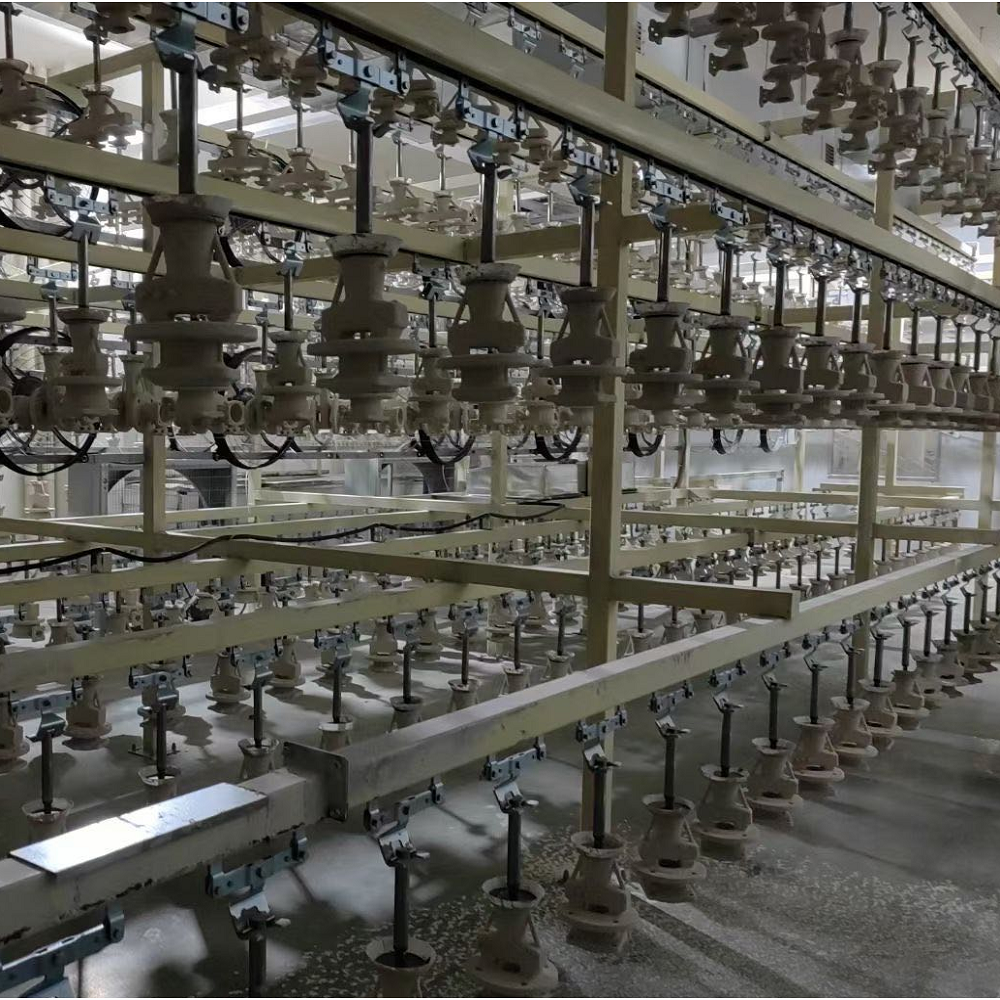

^{The YN-GZX-600Z series shell drying line is mainly used for drying medium-temperature mold materials for precision casting shells. It can also be freely used as a pipeline system in other industries to complete and flexibly transport workpieces between workshops, operations and processes.The dragging length of single power is ≤150 meters.}

^{The YN-GZX-600Z series drying line consists of seven parts: pipeline chain, "C" type track, drag mechanism, tensioning mechanism, lubrication mechanism, support mechanism, and electronic control system.}
3,Design status:

^{1,General design floor height: 3.5 meters from floor to floor.
2, If the distance between the slurry dipping room and the dewaxing room is very close, the drying line should be designed with a hanging and unloading port; if the slurry dipping room and the dewaxing room are far apart, separate the hanging and unloading ports of the drying line, that is, each There are two ports on the line (one hanging port and one unloading port).
3, The total line length is determined by the number of molded shell groups produced per day and the drying time of each layer.
4,The linear speed is wirelessly variable, generally selected from 0.4m/min to 4m/min.}

Supply Ability & Additional Information

Transportation: Ocean,Land

Supply Ability: 120 Meters/Year

Port: Qingdao

Payment Type: T/T

Incoterm: CIF,EXW,FOB
