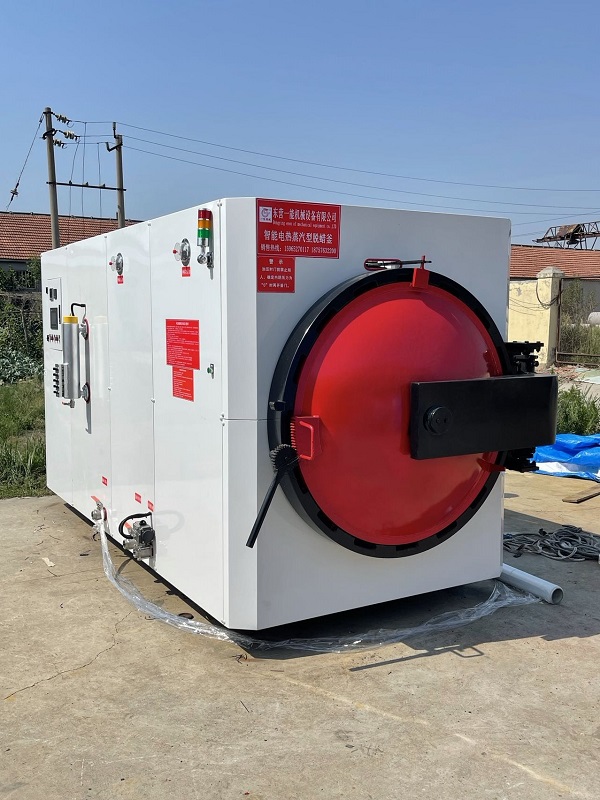

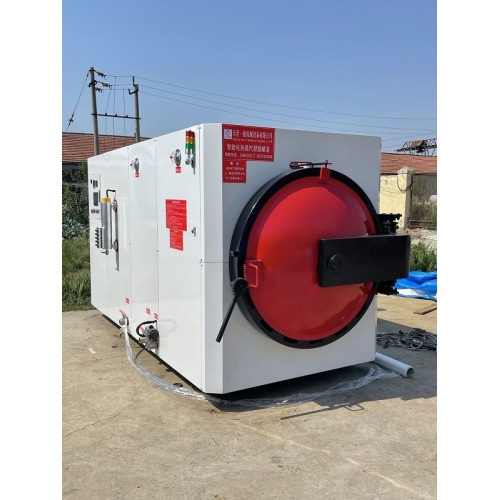

High Efficiency Electric Steam Dewaxing Kettle

High Efficiency Electric Steam Dewaxing Kettle

Payment Type:	T/T
Incoterm:	FOB,EXW,CIF
Min. Order:	1 Piece/Pieces
Transportation:	Land,Ocean
Port:	Qingdao
option:	YN-DTF-1600Z

$29120- /Piece/Pieces

29120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-DTF-1600Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Energy Saving

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

model	YN-DTF-1600Z
working pressure	0.85MPa
working temperature	185°C
Design pressure	0.95MPa
Voltage regulating range	0-0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 303kw

2. Product Overview

The DTF electric heating steam degreasing kettle is the core component of our precision Casting Equipment series. It is specifically designed for shell-type degreasing in the investment casting process, integrating international advanced technology. It is safe, reliable, and highly efficient. This system features rapid heating and degreasing capabilities, ensuring high efficiency and energy conservation, and meeting modern environmental protection standards.

3. Main Features and Advantages

3.1 Double-Wall Pressure Vessel Design

• Operates under high temperature and high pressure conditions, with the inner wall temperature maintained above 150°C continuously.

• Prevents the formation of condensate in the inner cavity.

• Provides rapid thermal response, reducing steam consumption.

• Reduces shell cracking and has an extremely low wax water content recovery rate.

3.2 System Configuration

• Includes: kettle body, base, quick opening mechanism, wax box, heating module, electrical control system, and external coating.

• Supports auxiliary equipment: shell transportation trolley and dedicated mold basket, facilitating efficient loading and unloading.

3.3 Operational Efficiency and Safety

• Quick opening mechanism for quick maintenance and ensuring sealing.

• Safety interlock device to prevent door opening unless pressure is completely released through the exhaust valve.

• Users can adjust the working pressure within the design range.

• Multiple levels of protection: low water level cut-off device to stop heating and prevent dry running; over-temperature alarm and automatic shutdown.

• Comprehensive valve and instrument settings: safety valve, steam inlet valve, exhaust valve, wax discharge valve, discharge valve, check valve, online filter, pressure and temperature indicators.

Supply Ability & Additional Information

Packaging: wooden box package

Transportation: Land,Ocean

Supply Ability: 120piece/Year

Certificate: ISO9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: FOB,EXW,CIF
