Advanced Electric Heating System for Effective Wax Removal

Advanced Electric Heating System for Effective Wax Removal

Payment Type:	T/T
Incoterm:	CIF,EXW,FOB
Min. Order:	1 Piece/Pieces
Transportation:	Land,Ocean
Port:	Qingdao
option:	YN-DTF-1600Z

$29120- /Piece/Pieces

29120USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information
Other information

Product Attributes

Model No.: YN-DTF-1600Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Online Support, Spare Parts

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

model	YN-DTF-1600Z
working pressure	0.85MPa
working temperature	185°C
Design pressure	0.95MPa
Voltage regulating range	0-0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 303kw

2. Product Overview

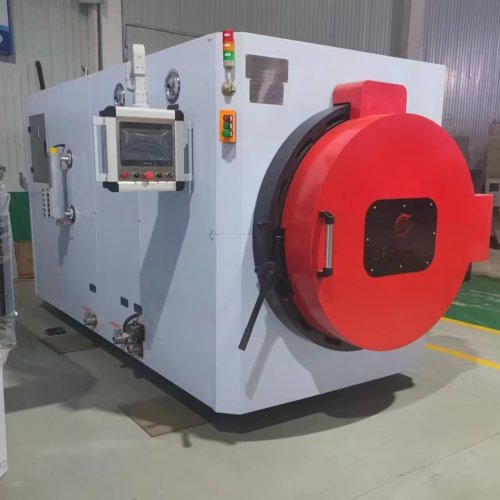

The DTF Electric Steam Dewaxing Kettle serves as a central element within our precision Casting Equipment lineup. Specifically engineered for removing wax from intermediate ceramic shells in investment casting, this system incorporates cutting-edge international engineering to ensure safe, dependable, and high-performance operation. Featuring fast heating and efficient dewaxing functionality, it achieves excellent energy utilization while complying with current environmental regulations.

3. Key Features & Advantages

3.1 Double-Walled Pressure Chamber Design

• Functions effectively under elevated temperature and pressure, ensuring the internal wall remains uniformly heated above 150°C.

• Eliminates condensation inside the chamber, enhancing process stability.

• Enables rapid heat transfer, which contributes to reduced steam usage.

• Minimizes thermal stress on molds, decreasing shell fractures and producing recovered wax with very low moisture content.

3.2 System Composition

• Comprises the primary kettle unit, support frame, quick-release door, wax collection tank, electric heating units, control panel, and outer insulation casing.

• Compatible with optional accessories such as mold handling carts and specialized baskets to streamline loading and unloading procedures.

3.3 Performance and Safety Enhancements

• Equipped with a rapid-access door for swift chamber entry and airtight closure.

• Integrated safety interlock system blocks door opening until all internal pressure is safely vented.

• Allows operators to adjust operating pressure within predefined safety thresholds.

• Features multiple protective mechanisms: automatic shutdown during low-water conditions to avoid overheating, and over-temperature detection with emergency power-off.

• Complete instrumentation package includes safety relief valve, steam inlet valve, exhaust valve, wax outlet valve, discharge valve, check valve, inline filter, and real-time pressure and temperature monitoring devices.

Supply Ability & Additional Information

Packaging: wooden box package

Transportation: Land,Ocean

Supply Ability: 120piece/Year

Certificate: ISO9001:2015

Port: Qingdao

Payment Type: T/T

Incoterm: CIF,EXW,FOB
