Advanced Dewaxing Machine for Investment Casting Foundry

Advanced Dewaxing Machine for Investment Casting Foundry

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	Qingdao
Model:	YN-DLF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Field Maintenance And Repair Service, Spare Parts, Online Support

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Other, Manufacturing Plant

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	wooden box package
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 153kw
dimensions	3250×1740×2150
weight	2.75T

2,Description

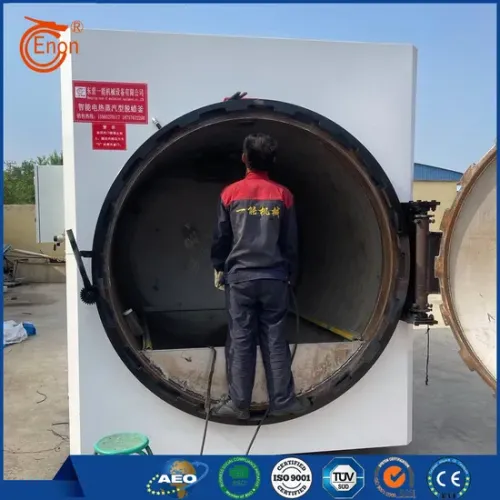

The DTF Electric Heating Steam Dewaxing Kettle is one of the key pieces of complete precision Casting Equipment produced by our company. It is mainly used for the dewaxing process of middle mold shells in precision casting. In the design and manufacturing of this machine, we have summarized the advantages of numerous similar products at home and abroad, and strived for safety, reliability, advanced performance, and practicality. It has the characteristics of fast temperature rise, rapid dewaxing, and more. Currently, it is an ideal dewaxing equipment with good environmental protection performance and high thermal efficiency.
3,Main Features and Advantages

3.1 The DTF Electric Steam Dewaxing Kettle adopts a double-layer pressure vessel design. During operation, the outer tank is in high-temperature and high-pressure state, so the inner surface temperature of the kettle is always above 150 ºC. It has no condensed water in the inner tank, fast heat balance, saved high-temperature steam during dewaxing, less prone to shell cracking, and low wax moisture content.

3.2 Structure: The electric heating dewaxing kettle consists of tank body, base, quick-opening door, wax bath, heater, electrical control cabinet and outer skin. It is also equipped with a carriage for mold shell transportation and mold baskets to assist in smooth and simple dewaxing.

The tank has a quick door-opening device, which improves safety and reliability, and makes opening/closing the kettle door during operation convenient and time-saving. The tank door is equipped with a safety interlock mechanism: the kettle door cannot be opened if the exhaust valve is not opened, greatly enhancing safety and reliability.

The equipment has a pressure setting device: within the design pressure range, users can set the operating pressure arbitrarily as needed. It also has water shortage protection to stop heating: if there is no water in the tank or the water level is below the set minimum protection limit, the electric heater will not work or stop working to prevent dry burning and heater damage. The temperature alarm device can automatically alarm and stop heating when temperature exceeds the limit. It is also equipped with safety valve, intake valve, exhaust valve, wax valve, drain valve, check valve, pipeline filter, pressure gauge and temperature gauge.
