High Precision Investment Casting Dewaxing Oven

High Precision Investment Casting Dewaxing Oven

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	QINGDAO

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Molding Technics: /

Application: Machinery Parts

Material: Carbon Steel

Surface Preparation: Spray-Paint

Surface Roughness: Ra6.3

Machining Tolerance: +/-0.02mm

Standard: GB

Certification: ISO 9001:2015

After-sales Service: 1years

Warranty: 1years

Transport Package: Tray

Trademark: Enon

Origin: China

HS Code: 8419899090

Production Capacity: 500piece

Customization: Available

Casting Method: Directional Crystallization

Process: Lost Wax Casting

Shipping Cost: Contact the supplier about freight and estimated delivery time.

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	WOODEN BOX
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 123kw

2,Description

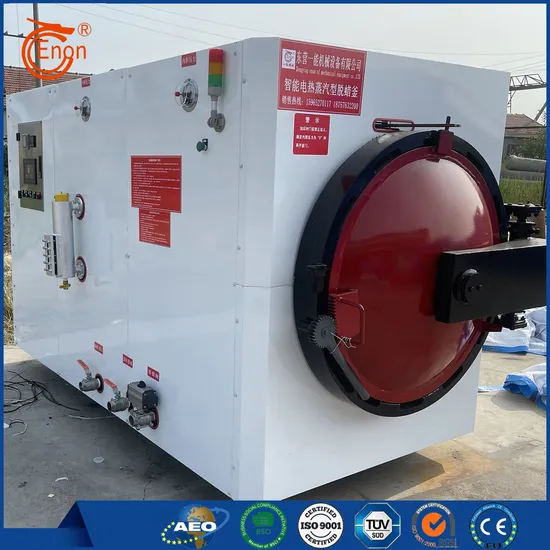

DTF electric heating steam dewaxing kettle is one of the complete precision Casting Equipment produced by our company. It is mainly used for the dewaxing process of precision casting middle mold shell. This machine summarizes the advantages of many similar products at home and abroad in design and manufacturing, strives for safety and reliability, advanced and practical, has the characteristics of fast temperature rise, rapid dewaxing, etc. It is currently an ideal dewaxing equipment with good environmental protection conditions and high thermal efficiency.

3,Main Features and Advantages

3.1 DTF electric steam dewaxing kettle is a double-layer pressure vessel design. Because the outer tank is in a high-temperature and high-pressure state during operation, the inner surface temperature of the kettle is always maintained above 150 ºC, the inner tank has no condensed water phenomenon, the heat balance is fast, high-temperature steam is saved during dewaxing, the shell is not easy to crack, and the wax moisture content is low, etc. Features.
3.2 Structure: The electric heating dewaxing kettle is composed of the tank body, the base, the quick opening door, the wax bath, the heater, the electrical control cabinet, the skin and other parts. In addition, it is equipped with a carriage for transporting the mold shell and a mold basket, which can assist in the smooth and simple completion of dewaxing.
In structure, the tank is equipped with a quick door opening device, which not only improves safety and reliability, but also opens and closes the kettle door during operation, which is very convenient and time-saving. The tank door is equipped with a safety interlock mechanism. When the exhaust valve is not opened, the kettle door cannot be opened, which greatly improves safety and reliability. The equipment is also equipped with a pressure setting device. Within the design pressure range, the user can set the use pressure arbitrarily according to his needs. It also has the protection against water shortage to stop heating. When there is no water in the tank or the water level does not reach the set minimum protection limit , The electric heater will not work or stop working to prevent dry burning and damage the heater; the temperature alarm device can automatically alarm when the temperature exceeds the limit and stop heating. And equipped with safety valve, intake valve, exhaust valve, wax valve, drain valve, check valve, pipeline filter, pressure gauge, temperature gauge, etc.
