Steam Dewaxing Kettle for Safety and Reliability

Steam Dewaxing Kettle for Safety and Reliability

Payment Type:	T/T
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land
Port:	QINGDAO
Model:	YN-DTF-1200Z

$23240- /Piece/Pieces

23240USD

Contact Now

Product Attributes
Packaging & Delivery
Product Description
Supply Ability & Additional Information

Product Attributes

Model No.: YN-DTF-1200Z

Brand: Enon

Place Of Origin: China

Old And New: New

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: New Product 2020

Core Component Warranty Period: 1 Year

Core Components: Plc

Warranty Period: 1 Year

Core Selling Point: Easy To Operate

Out-of-warranty Service: Video Technical Support, Spare Parts, Online Support, Field Maintenance And Repair Service

Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None

Showroom Location (in Which Countries Are There Sample Rooms Overseas): None

Applicable Industry: Manufacturing Plant, Other

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	WOODEN BOX
Picture Example:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1,Technical parameter

Model	YN-DTF-1200Z
working space	φ1200×1500mm
working pressure	0.85MPa
working temperature	185ºC
Design pressure	0.95MPa
Voltage regulating range	0~0.85MPa
Boost rate	0.6MPa/5s
power	380V/50Hz 153kw
dimensions	4250×2050×2150
weight	4.2T

2,Description

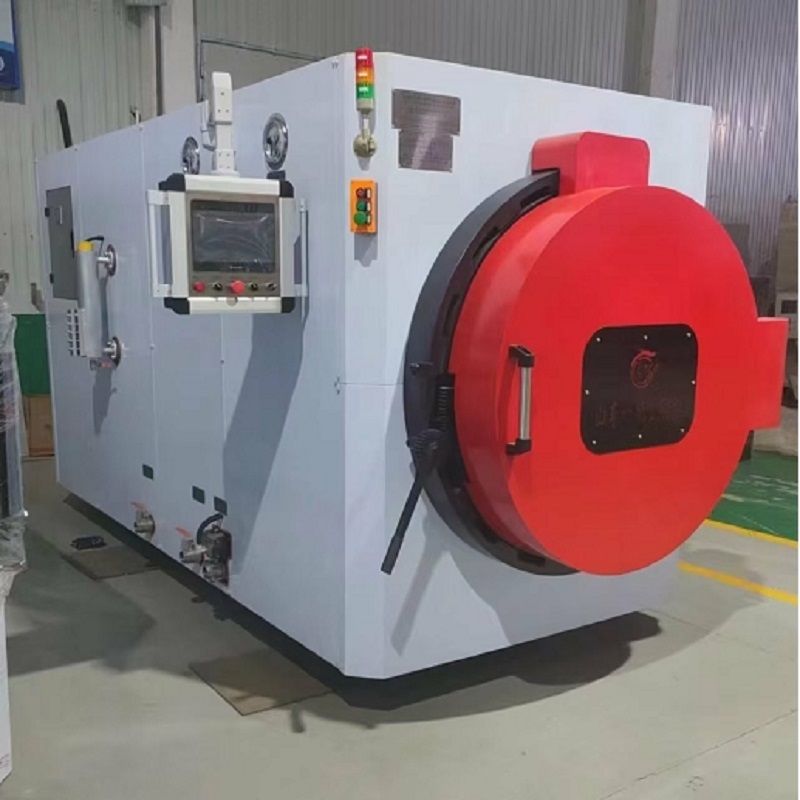

The DTF electric steam dewaxing kettle is one of our company's complete sets of precision Casting Equipment, primarily used for the dewaxing process of medium-sized shells in precision casting. This machine combines the advantages of similar products on the market, striving for safety, reliability, advanced practicality, and excellent properties such as rapid heating and rapid dewaxing. It is currently the most efficient and environmentally friendly dewaxing equipment available.

3,Main Features and Advantages

3.1（1）.Efficient Heat Transfer: The outer pot operates under high temperature and high pressure, maintaining a stable inner surface temperature above 150°C, ensuring rapid thermal equilibrium.

(2)Energy-Saving and Environmentally Friendly: The unique structural design effectively prevents condensation in the inner pot, significantly reducing high-temperature steam consumption.

(3) Excellent Durability: The optimized pressure distribution design significantly reduces the risk of shell cracking and extends the equipment's service life.

(4)High-Quality Dewaxing: The advanced temperature control system ensures thorough wax-water separation, resulting in an extremely low moisture content in the finished wax. This equipment, through its innovative double-layer pressure vessel structure, achieves both energy efficiency and process quality, making it an ideal choice for modern dewaxing processes.

3.2 This equipment consists of core components such as the kettle body, base, quick-opening door, wax tank, heating system, electrical control cabinet, and outer cover. It is equipped with a mold shell/mold basket bracket for quick assembly and disassembly, improving operational efficiency.

Structural Features

（1）Quick-Opening Door Design

A safety interlock mechanism ensures that the kettle door cannot be opened unless the exhaust valve is open, eliminating the risk of misoperation.

Convenient operation saves time and efficiency when opening and closing the door, while also enhancing equipment reliability.

（2） Intelligent Pressure Regulation

Equipped with an adjustable pressure setting device, users can freely adjust the operating pressure within the designed range to meet different process requirements.

（3）Multiple Safety Protections

Water shortage protection: Automatically cuts off the heating power when the water level falls below the safety limit to prevent dry heating and damage to the heater.

Overtemperature alarm: Automatically alarms and stops heating when the temperature exceeds the set threshold, ensuring process safety.

Safety Pressure Relief: Equipped with safety valves, check valves, and other devices to prevent overpressure risks. 4. Comprehensive Control System

Equipped with pressure and temperature gauges for real-time operating status monitoring.

Integrated air inlet and exhaust valves, wax valves, drain valves, and pipeline filters optimize the dewaxing process and improve production efficiency.

This equipment utilizes intelligent control and multiple safety features to ensure an efficient, stable, and safe dewaxing process, making it ideal for automated production in the precision casting industry.
