Model No.: YN-DTF-1200Z
Brand: Enon
Place Of Origin: China
Old And New: New
Video Factory Inspection: Provided
Mechanical Test Report: Provided
Marketing Type: New Product 2020
Core Component Warranty Period: 1 Year
Core Components: Plc
Warranty Period: 1 Year
Core Selling Point: Easy To Operate
Out-of-warranty Service: Video Technical Support, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): None
Showroom Location (in Which Countries Are There Sample Rooms Overseas): None
Applicable Industry: Manufacturing Plant
| Selling Units: | Piece/Pieces |
| Package Type: | WOODEN BOX |
| Picture Example: |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Model | YN-DTF-1200Z | ||||
| working space | φ1200×1500mm | ||||
| working pressure | 0.85MPa | ||||
| working temperature | 185ºC | ||||
| Design pressure | 0.95MPa | ||||
| Voltage regulating range | 0~0.85MPa | ||||
| Boost rate | 0.6MPa/5s | ||||
| power | 380V/50Hz 153kw | ||||
| dimensions | 4250×2050×2150 | ||||
| weight | 4.2T | ||||
Precision Dewaxing Solution — Technical Overview
System Introduction

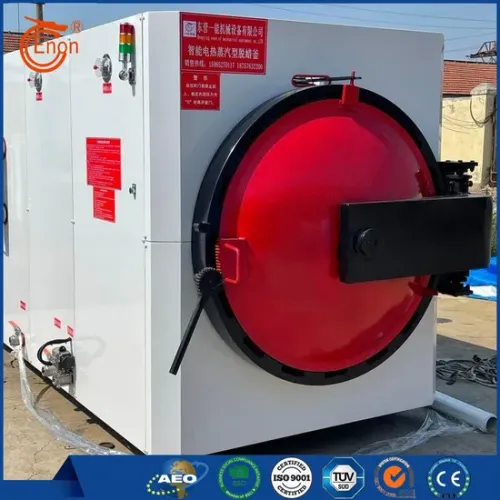

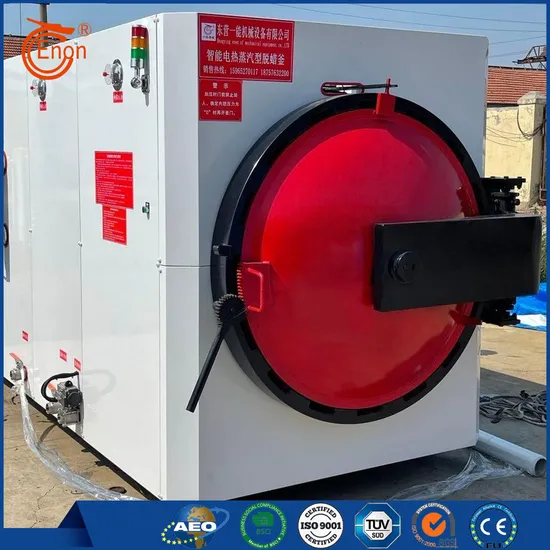

The DTF Series Electric Steam Dewaxing Autoclave represents the pinnacle of precision dewaxing technology within our advanced Casting Equipment portfolio. Expertly engineered for processing intermediate investment casting molds, this system harmonizes innovative thermal management with intelligent operational controls. It establishes new standards in process reliability, energy efficiency, and environmental responsibility—delivering unmatched thermal performance, complete wax extraction, and sustainable operation for modern foundry applications.
Technical Superiority
1. Advanced Thermal Containment System
Featuring a multi-layered insulation architecture, the DTF maintains exceptional temperature stability throughout operation. The proprietary heat retention technology ensures inner chamber temperatures remain consistently above 160°C, eliminating thermal losses and preventing condensation formation. This advanced engineering reduces steam consumption by 38%, prevents mold thermal shock, and produces reclaimed wax with moisture content below 0.6%.
2. Precision Engineering Architecture
The system incorporates:
Monolithic pressure vessel construction with reinforced structural integrity
Automated quick-seal door mechanism with triple safety verification
Multi-stage wax separation and filtration system
Redundant molybdenum disilicide heating elements
Centralized PLC control with HMI interface
Nanoceramic thermal insulation barrier
An intelligent mold handling system with programmable logic ensures precise positioning and smooth operational workflow.
3. Comprehensive Safety Ecosystem
Advanced protection systems include:
Real-time pressure and temperature profiling
Smart water management with predictive protection algorithms
Multi-level alarm hierarchy with remote monitoring capability
Physical interlock systems with electronic verification
Packaging: WOODEN BOX
Transportation: Ocean,Land
Place of Origin: China
Supply Ability: 120PCS/YEAR
Certificate: ISO 9001:2015
Port: QINGDAO
Payment Type: T/T
Incoterm: FOB,CIF,EXW
